Portable Petrol Concrete Vibrator CPV Series

Powered by the reliable Honda GX35 engine, the CPV series allows operators to vibrate concrete anywhere on-site with total freedom. No electricity or separate drive units required.

🔌 No Electricity Needed 🏎️ Honda GX35 Powered 🎒 Ergonomic Backpack Design

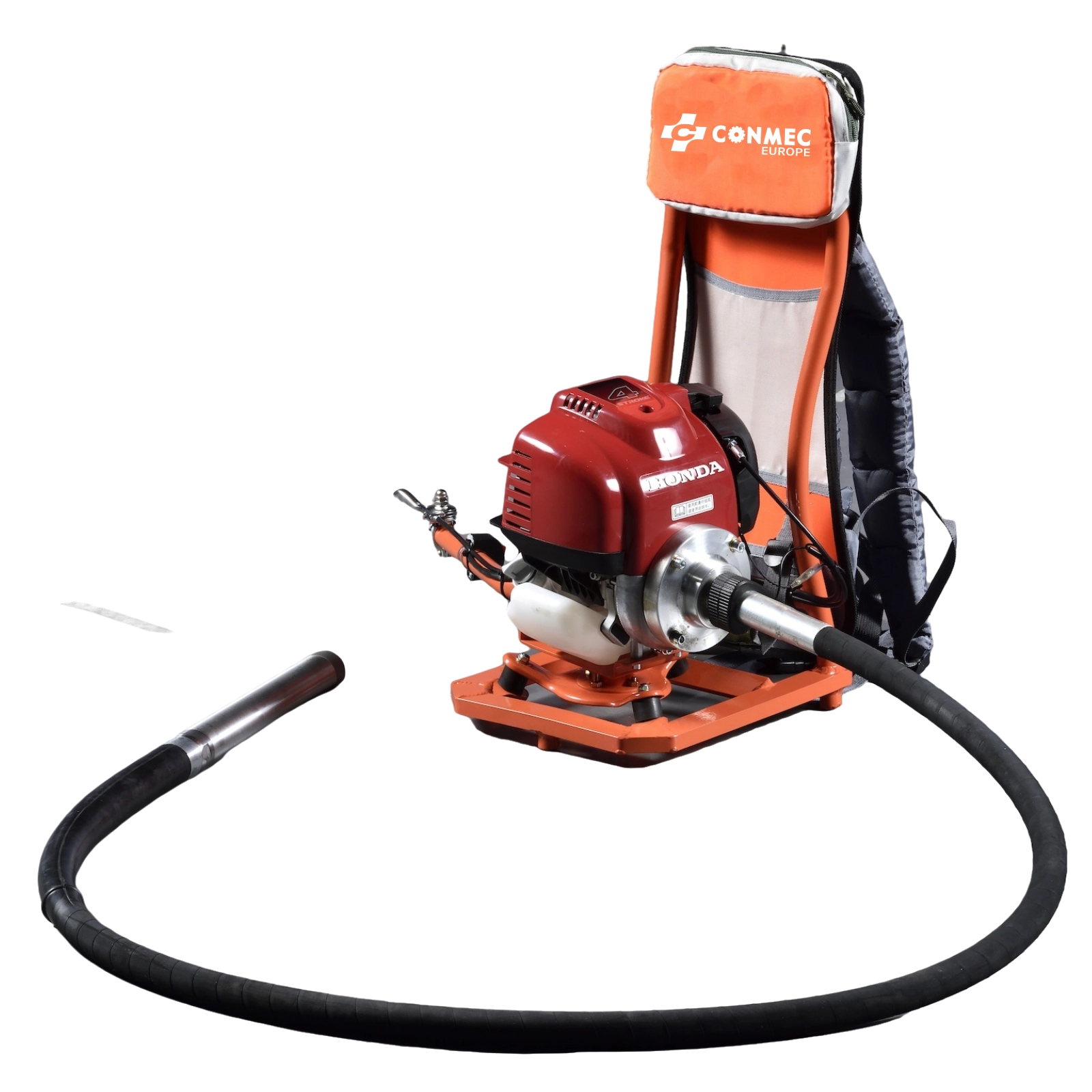

CONMEC CPV Portable Petrol Concrete Vibrator

Jobsite Mobility & Performance

Engineered for maximum maneuverability without compromising on vibration force.

Operational Freedom
  • Independent Power: Powered by a Honda GX35 petrol engine, eliminating the need for trailing cables or power generators.
  • Universal Compatibility: The drive unit is compatible with all CVP series vibrator pokers, offering maximum versatility.
  • Lightweight Design: Optimized for ease of use, allowing operators to move around complex sites effortlessly.
Technical Excellence
  • High-Speed Vibration: Capable of rotation speeds up to 10,000 r/min for superior concrete consolidation.
  • Precision Poker Head: Features a standard 42mm diameter head for optimal vibration displacement.
  • Multiple Shaft Options: Flexible shafts available in 1.5m, 2.0m, and 2.5m lengths to suit different pour depths.

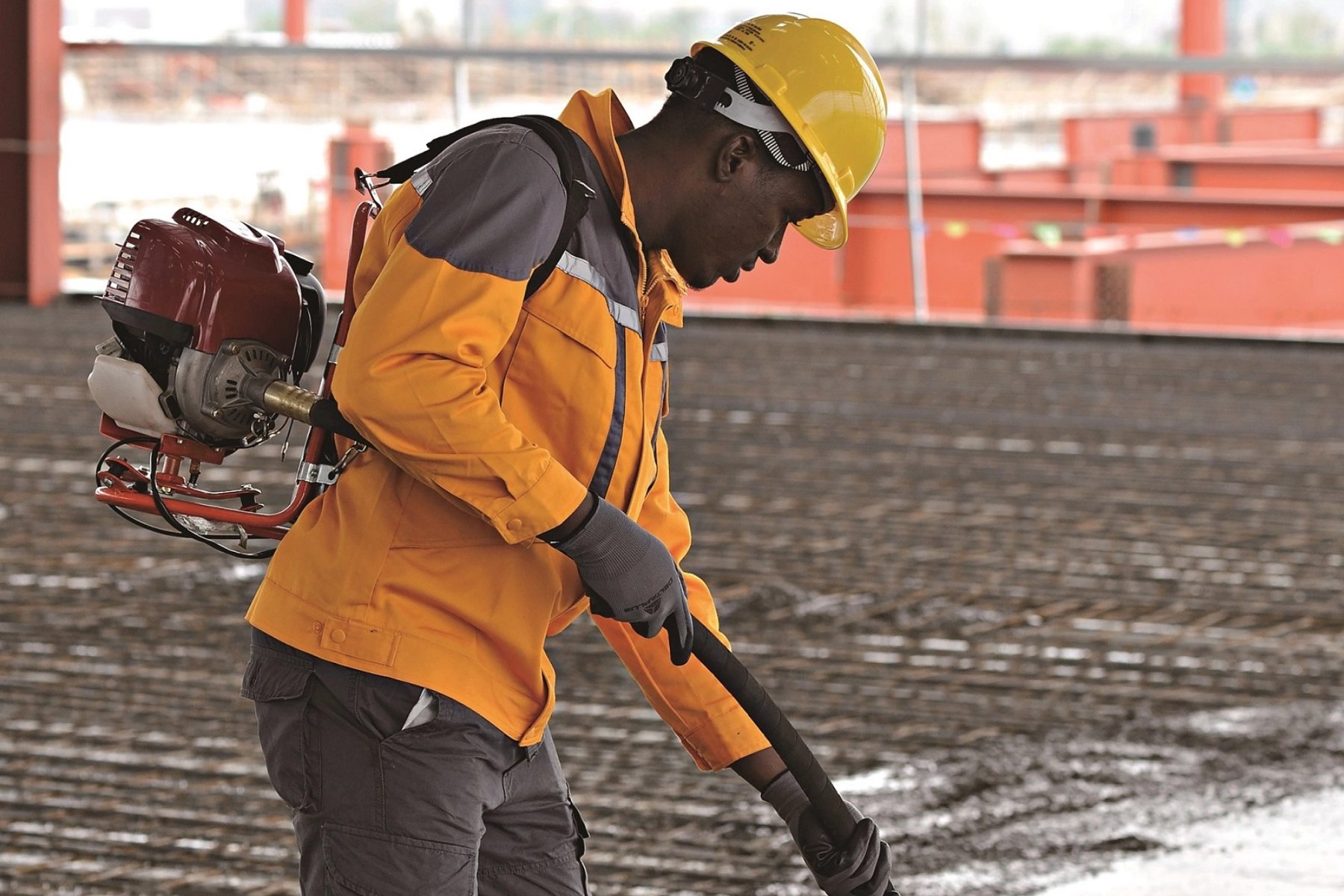

Operator using CPV Vibrator on site

Mobile Efficiency

Ideal for stairs, columns, and remote locations where power access is limited.

Heavy-Duty Poker

42mm diameter head ensures deep and consistent consolidation of the concrete mix.

Vibrator Poker Options (CVP Series)

High-performance poker heads designed for seamless integration with the CPV drive unit.

Model Head Dia. * Length Vibrator Amplitude Frequency Hose / Shaft Dia. Net Weight (6m)
CVP32 32 * 583 mm 0.82 kg 220 Hz 30 / 10 mm 15.0 kg
CVP38 38 * 583 mm 1.20 kg 200 Hz 30 / 10 mm 15.6 kg
CVP45 45 * 583 mm 1.20 kg 200 Hz 32 / 12 mm 18.6 kg
CVP50 50 * 583 mm 1.20 kg 200 Hz 36 / 12 mm 20.2 kg
* All CVP series pokers are fully compatible with the CPV portable petrol drive unit.

Drive Unit Technical Specifications

Model Engine Type Power [kW(hp)] Vibrator Head Diameter Shaft Lengths Max Speed
CPV Honda GX35 1.2 (1.6) 42 mm 1.5 / 2.0 / 2.5 m 10,000 r/min
Acoustic Performance:
  • 8,000 r/min: 90 dB
  • 9,400 r/min: 94 dB
  • 10,000 r/min: 95 dB

* Tested in open indoor field, 3.5m from source.
