CONMEC CRT-836E
CRT-836E Battery Ride-on Power Trowel | 20 kW Motor, 90 min Runtime
Explore the CRT-836E lithium battery ride-on power trowel with a 20 kW motor. Delivers up to 90 minutes of runtime and proven reliability for professional concrete finishing applications.
- Maximum 150 rpm rotational speed
- Rugged one-piece welded frame
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-836E |
| Total Weight | 418 kg |
| Dimensions (L×W×H) | 1990 × 1030 × 1319 mm / 78.3 × 40.6 × 51.9 in |
| Battery Type | Lithium-ion 72 V / 230 Ah |
| Battery Weight | 98 kg |
| Motor Type | Permanent Magnet Synchronous |
| Motor Rated Power | 20 kW / 27 hp |

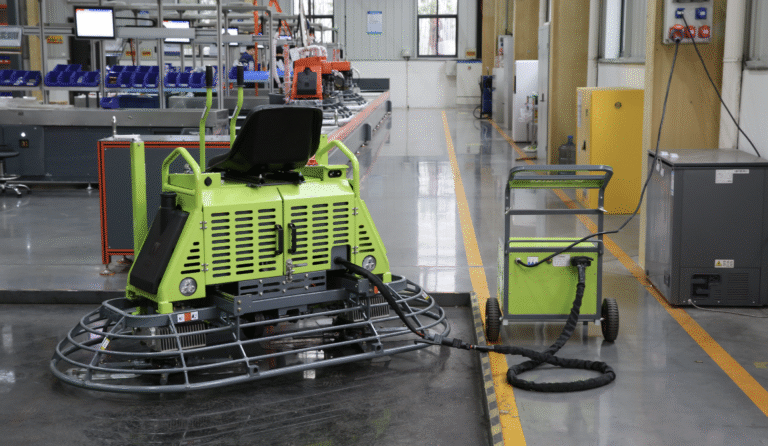

| Charging Time | 0–60%: 65 min • 0–80%: 90 min • 0–100%: 140 min |
| Operating Time (Endurance)* | 90 min |
| Maximum Speed | 150 rpm |
| Troweling Path Width | 1,910 mm / 75.2 in |
*Operating time may vary depending on surface conditions, battery age, and operating load.
Key Features – CRT-836E Lithium Ride-on Trowel
Extended Endurance
Delivers up to 90 minutes* of continuous operation — 12% longer runtime compared with CRT-846E.
Proven Reliability
Field-tested and trusted across multiple markets, ensuring stable performance and minimal maintenance.
High-Efficiency Lithium Power
72 V / 230 Ah lithium-ion battery system provides consistent power output and fast recharging.
20 kW Permanent Magnet Motor
Durable PMSM drive offers high torque with smooth, quiet, and energy-efficient performance.
Wide Working Coverage
1.91 m troweling width and 8 blades deliver excellent surface flatness and productivity.
Zero Emission & Low Noise
Eco-friendly electric drive improves operator comfort and allows indoor or night-time work.
Precision Control
Center-mounted mechanical steering system provides stable handling and accurate maneuvering.
Rugged Construction
High-strength welded frame and heavy-duty gearbox designed for long service life and reliability.
Operator Comfort

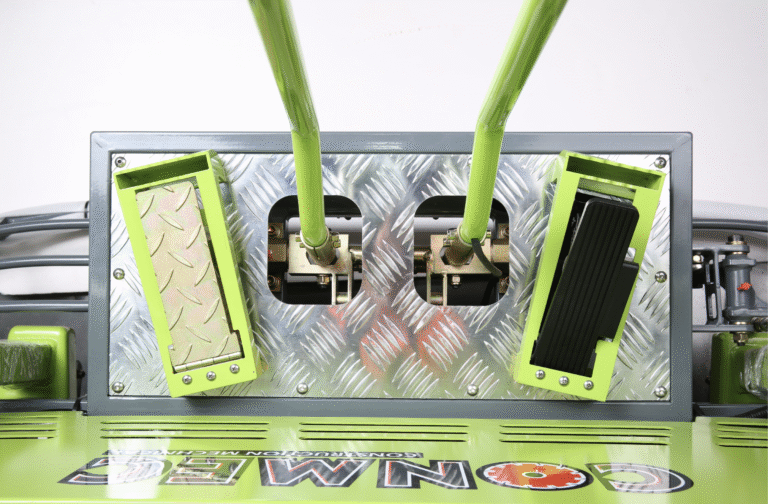

Ergonomic seat, safety pedal, and LED headlights ensure fatigue-free and safe operation.
*Operating time may vary depending on surface condition, battery age, and load.
