Ride-On Power Trowel Series
High-productivity finishing for large concrete slabs — engineered for flatness, output and operator comfort.

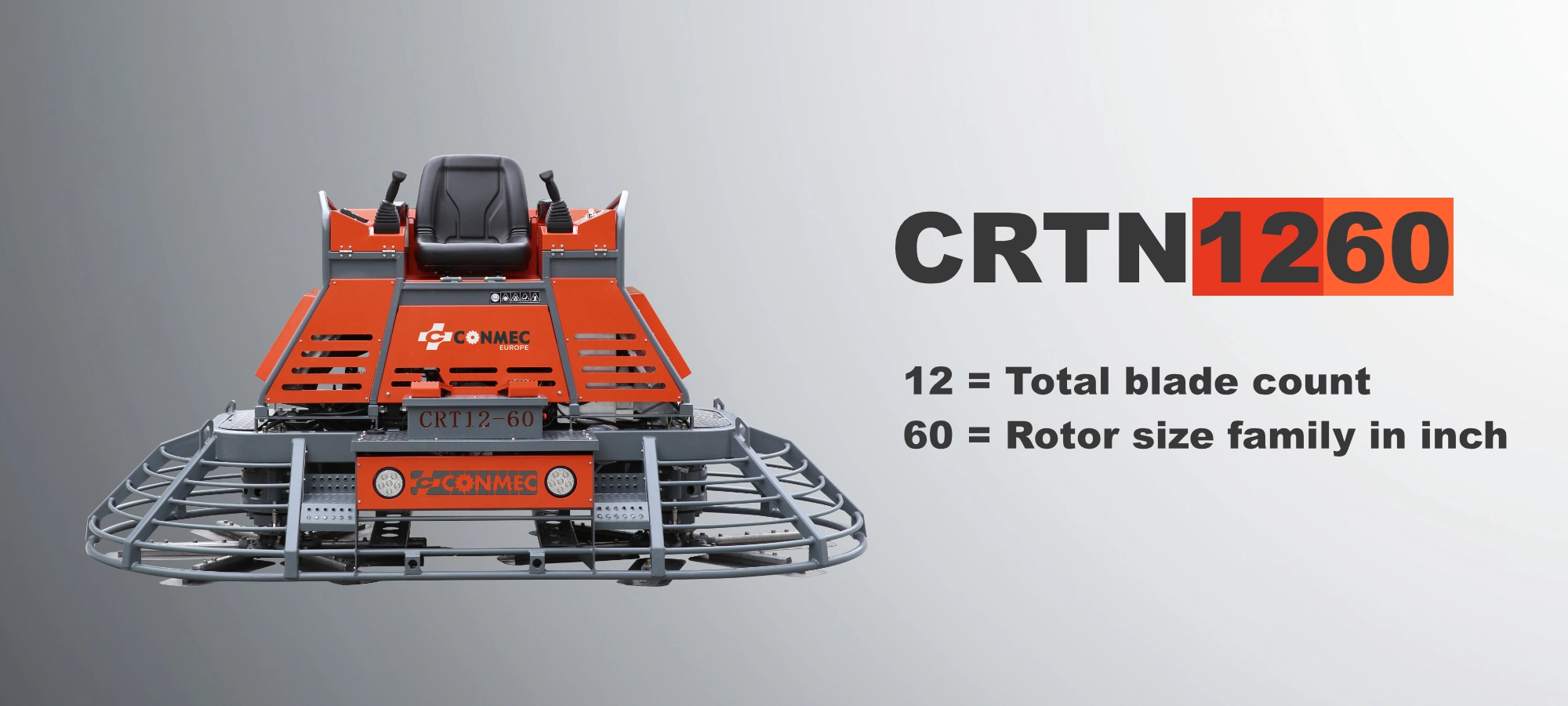

How to Read CONMEC Ride-On Model Codes
Model codes give a quick indication of drive type, blade count and rotor size.
Large units such as CRTN1260 and CRTN1248 use 12 blades with pan diameters up to approx. 1.52 m and working widths up to 3.05 m.

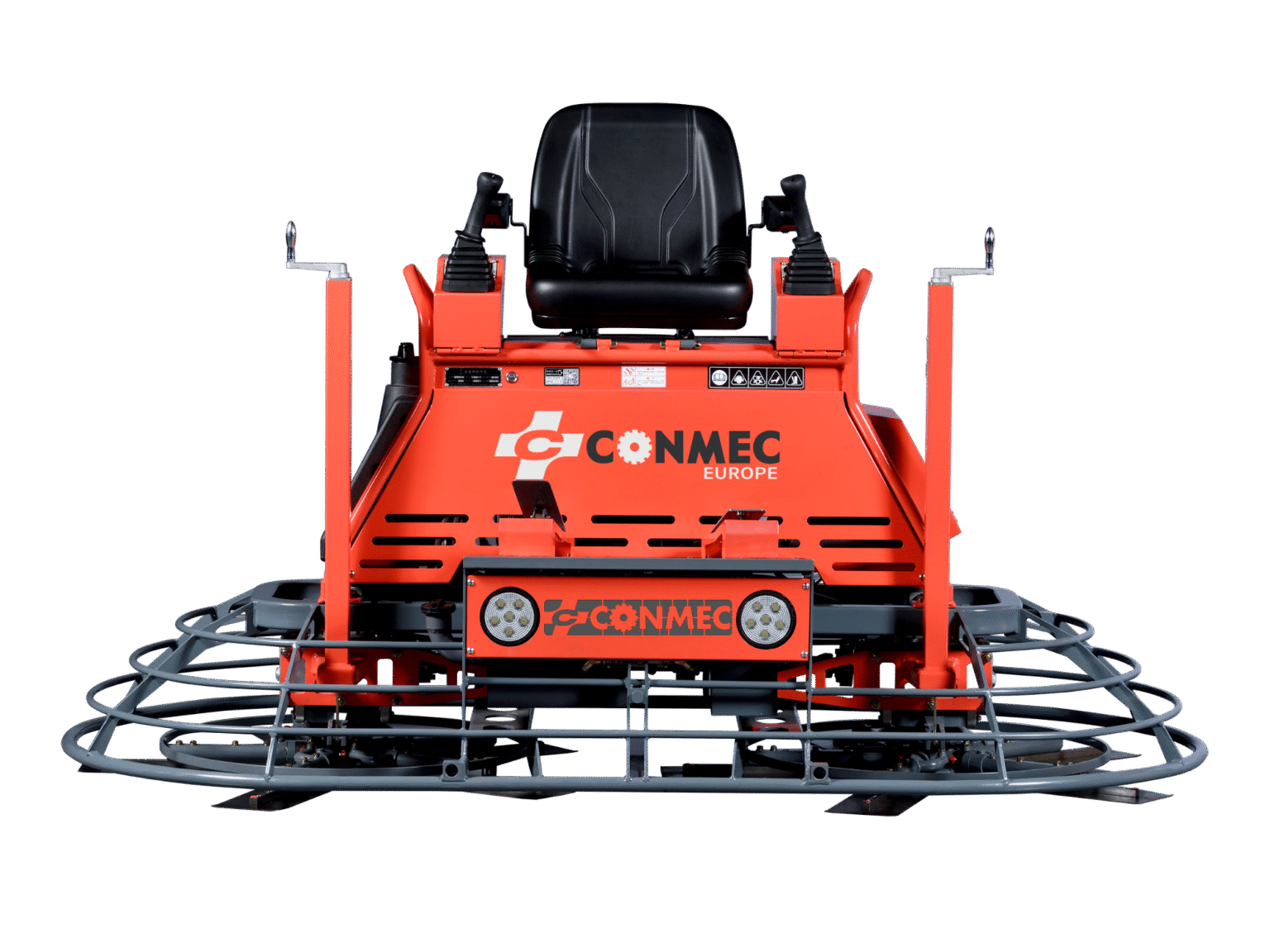

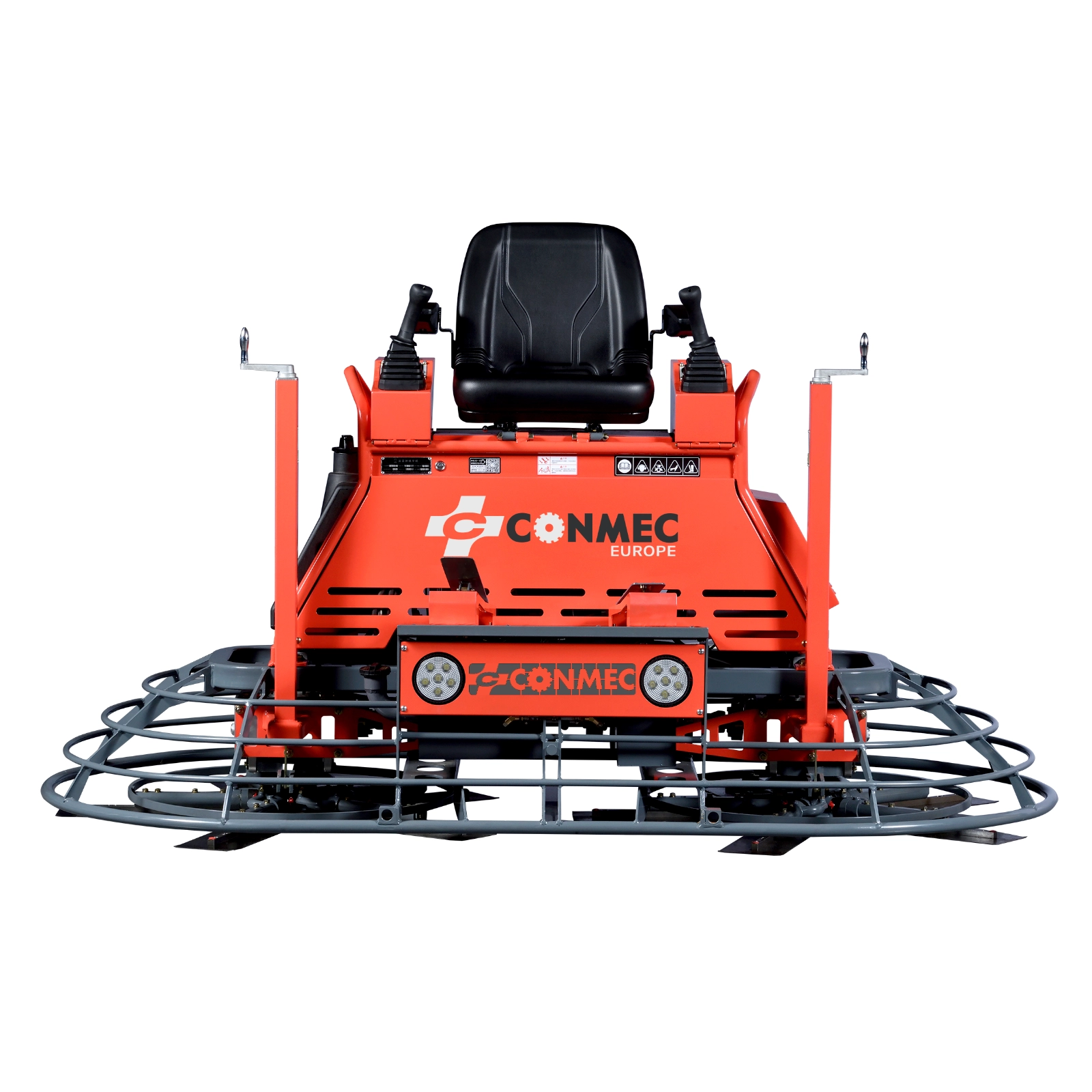

CRTN1046 · High-Output Ride-On
35 hp Vanguard petrol engine with hydraulic joystick steering and a 2.35 m working width.
10-blade 46-class machine for industrial floors needing high productivity.

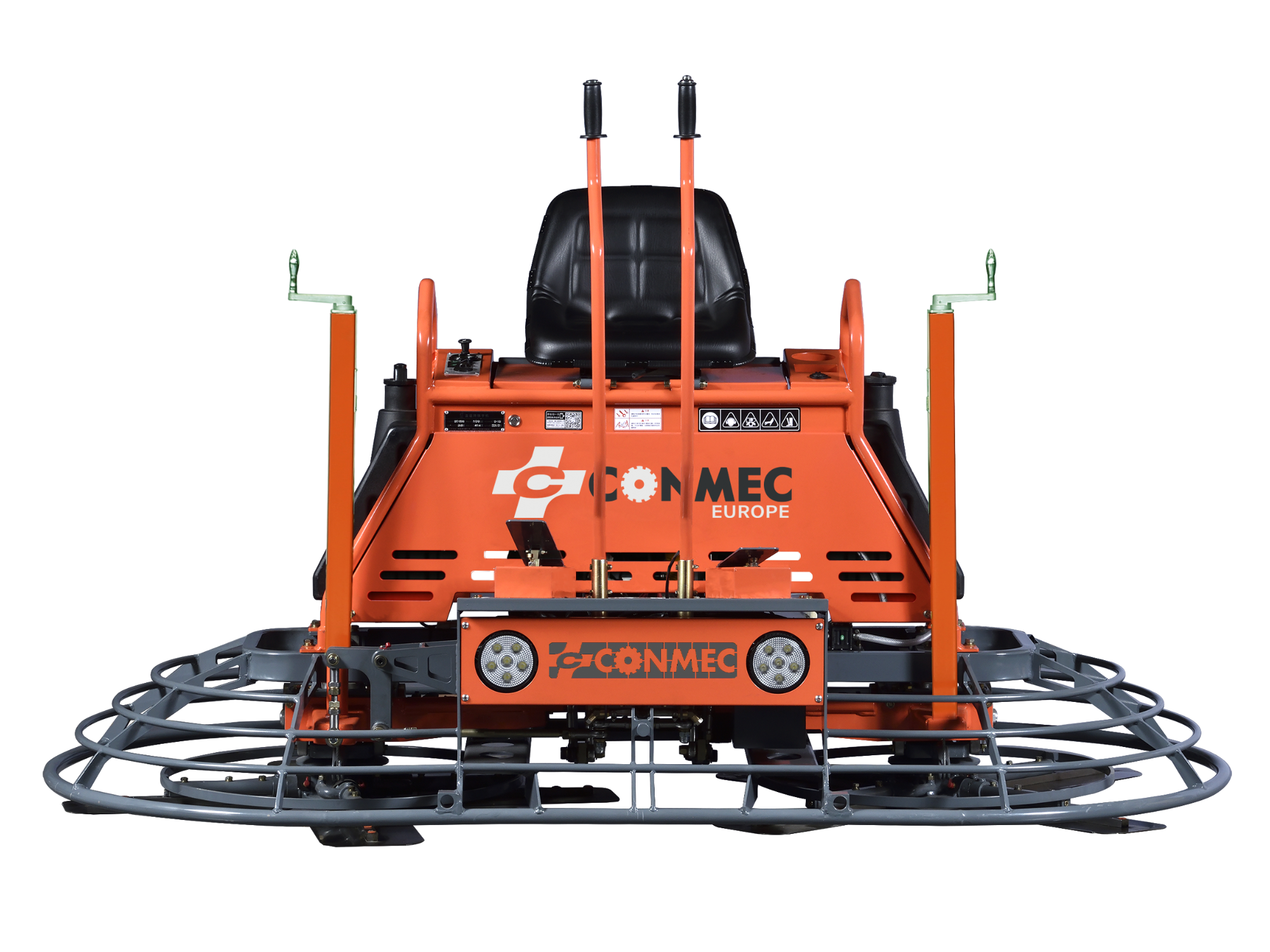

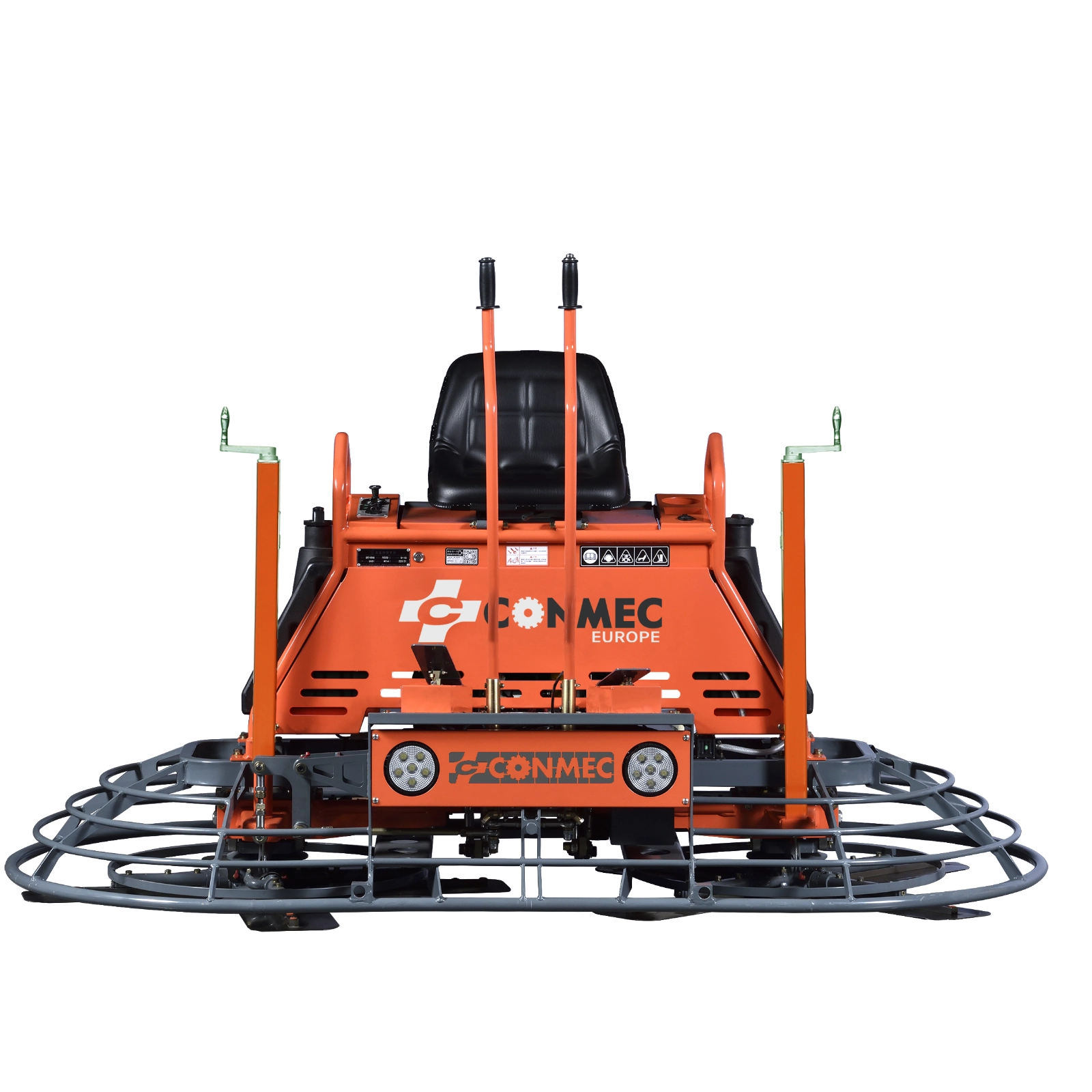

CRTN846 · General-Purpose Ride-On
35 hp Vanguard petrol engine with 2.35 m working width and 8 blades.
Strong all-round choice for mid-size jobs and rental fleets.

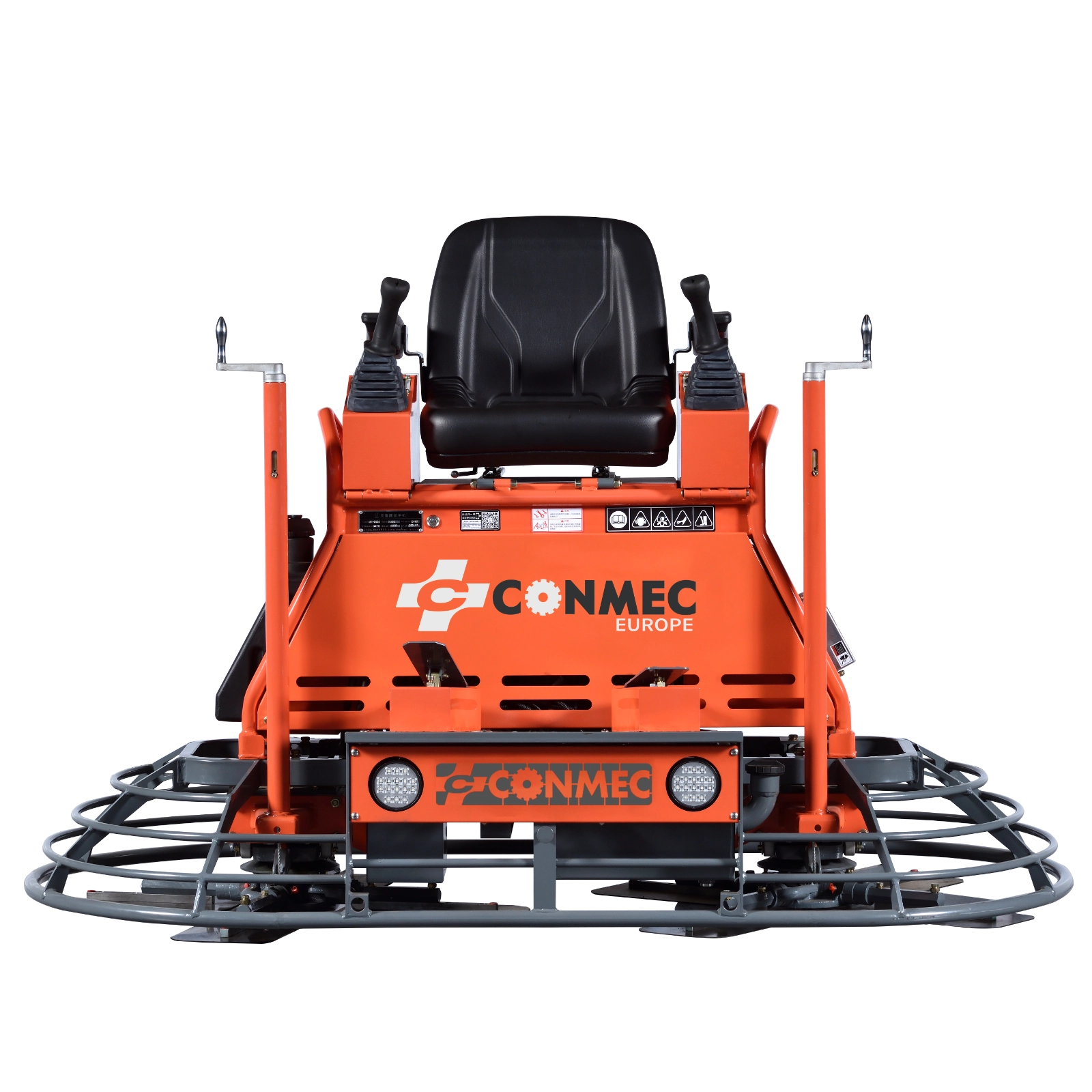

CRTH836 · Hydraulic 36-Class
24 hp Honda GX690 with hydraulic joysticks, 1.91 m working width and 8 blades.
High control precision for demanding floors and tighter layouts.

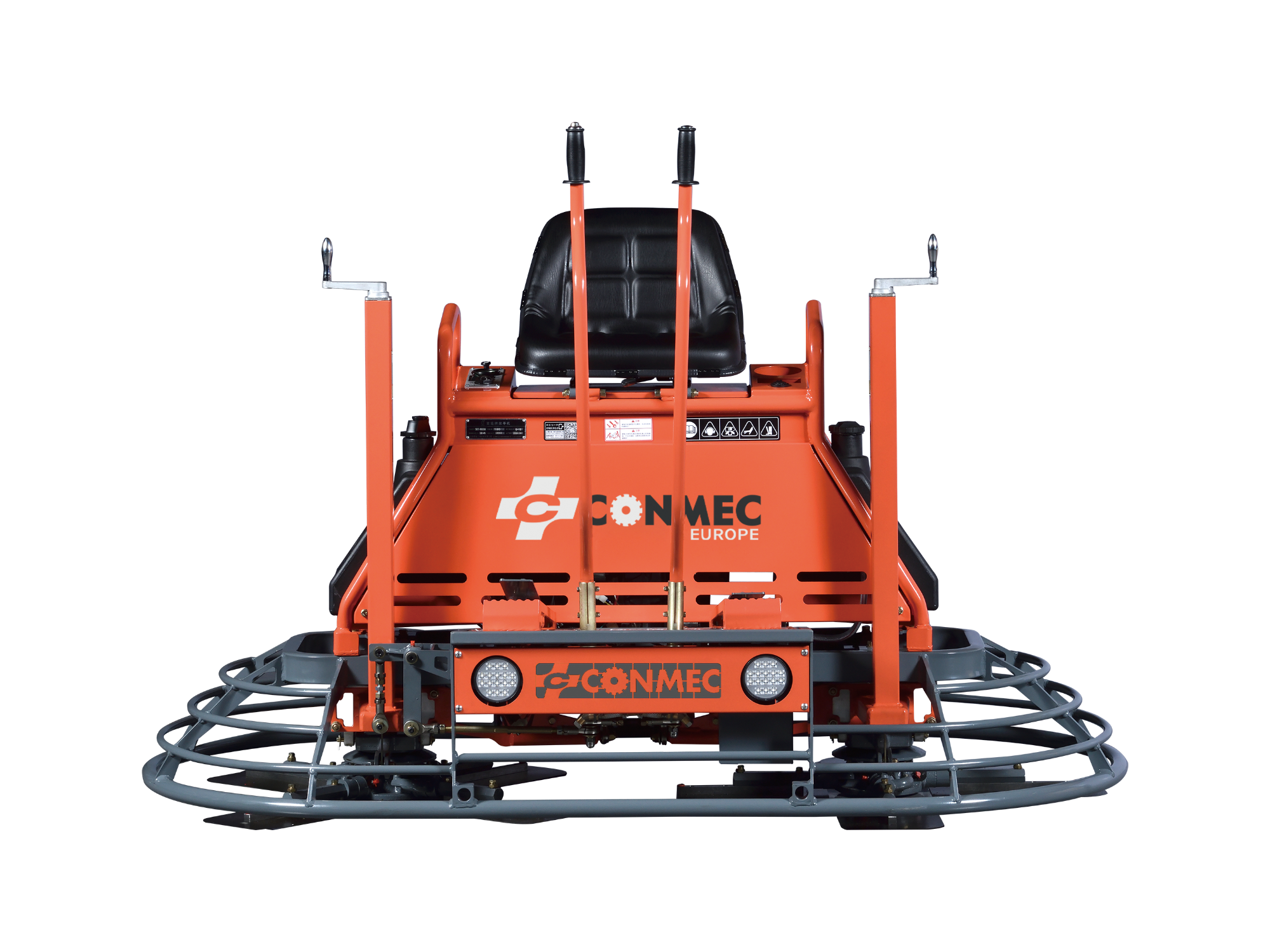

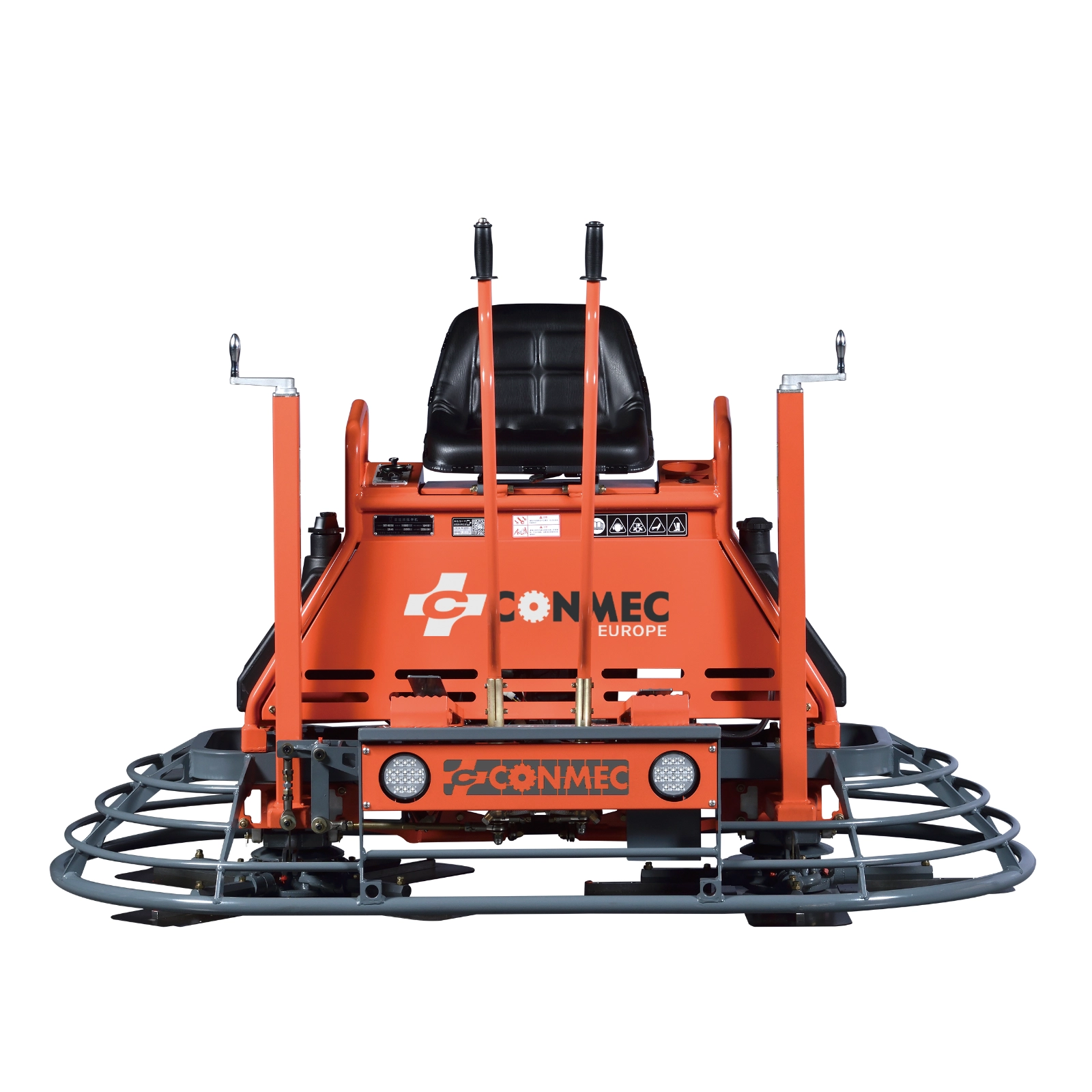

CRTN836 · Compact 36-Class
24 hp Honda GX690 with centre linkage steering and 1.91 m working width.
Compact and easy to transport — ideal upgrade from walk-behind trowels.

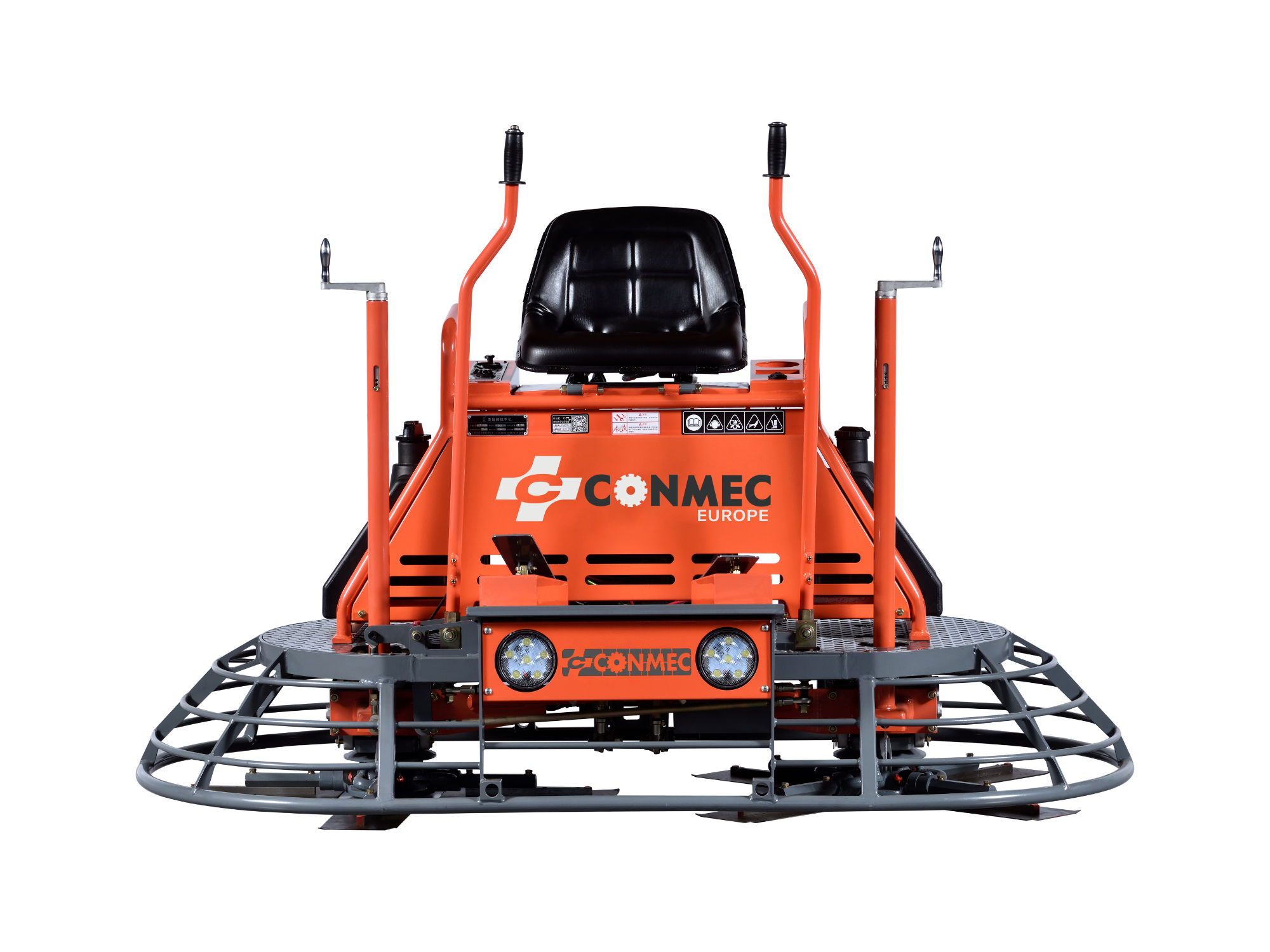

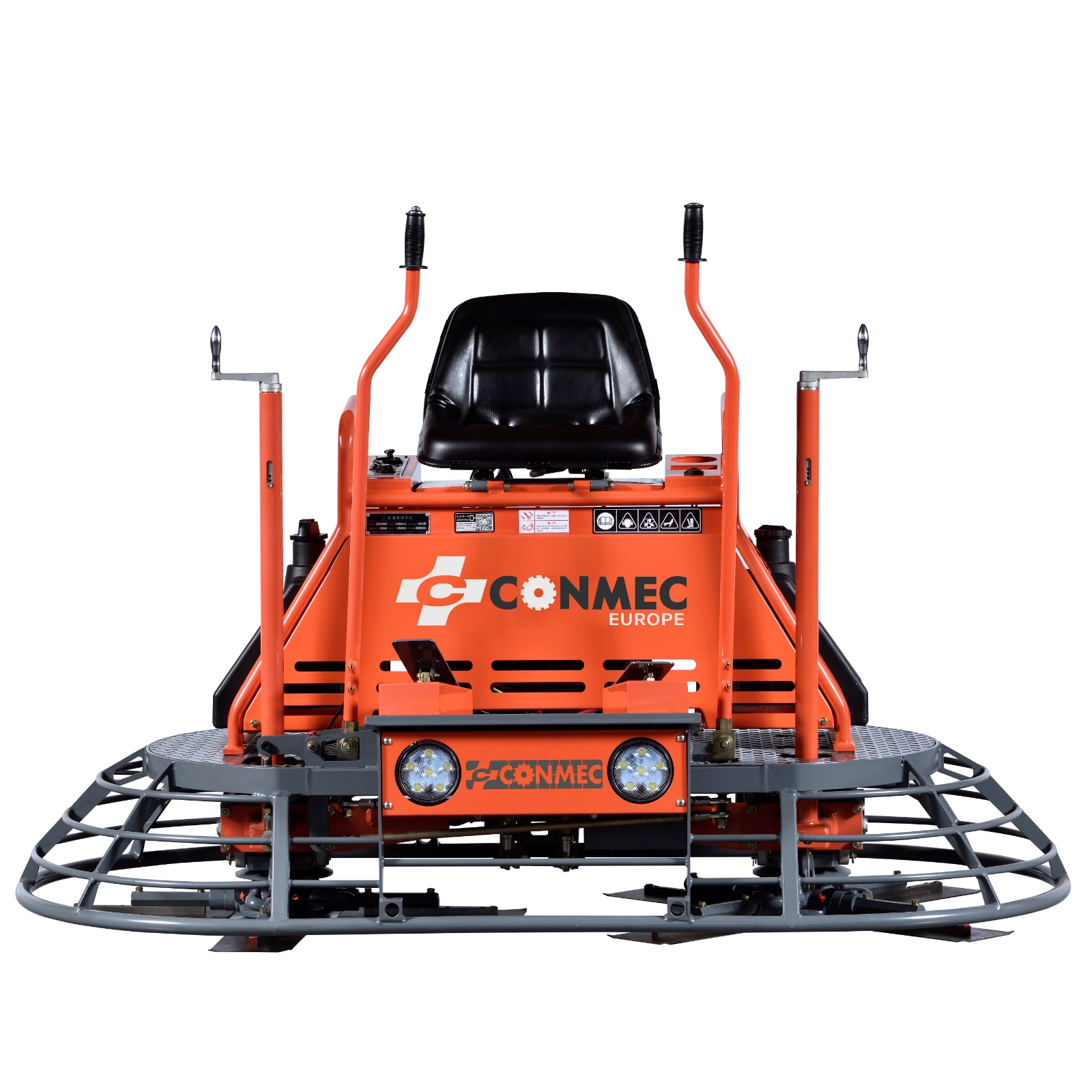

CRTS836 · Fast In / Fast Out
24 hp Honda GX690, 1.91 m working width and side-mounted linkage lever.
8-blade 36-class machine tuned for quick entry and exit on busy job sites.

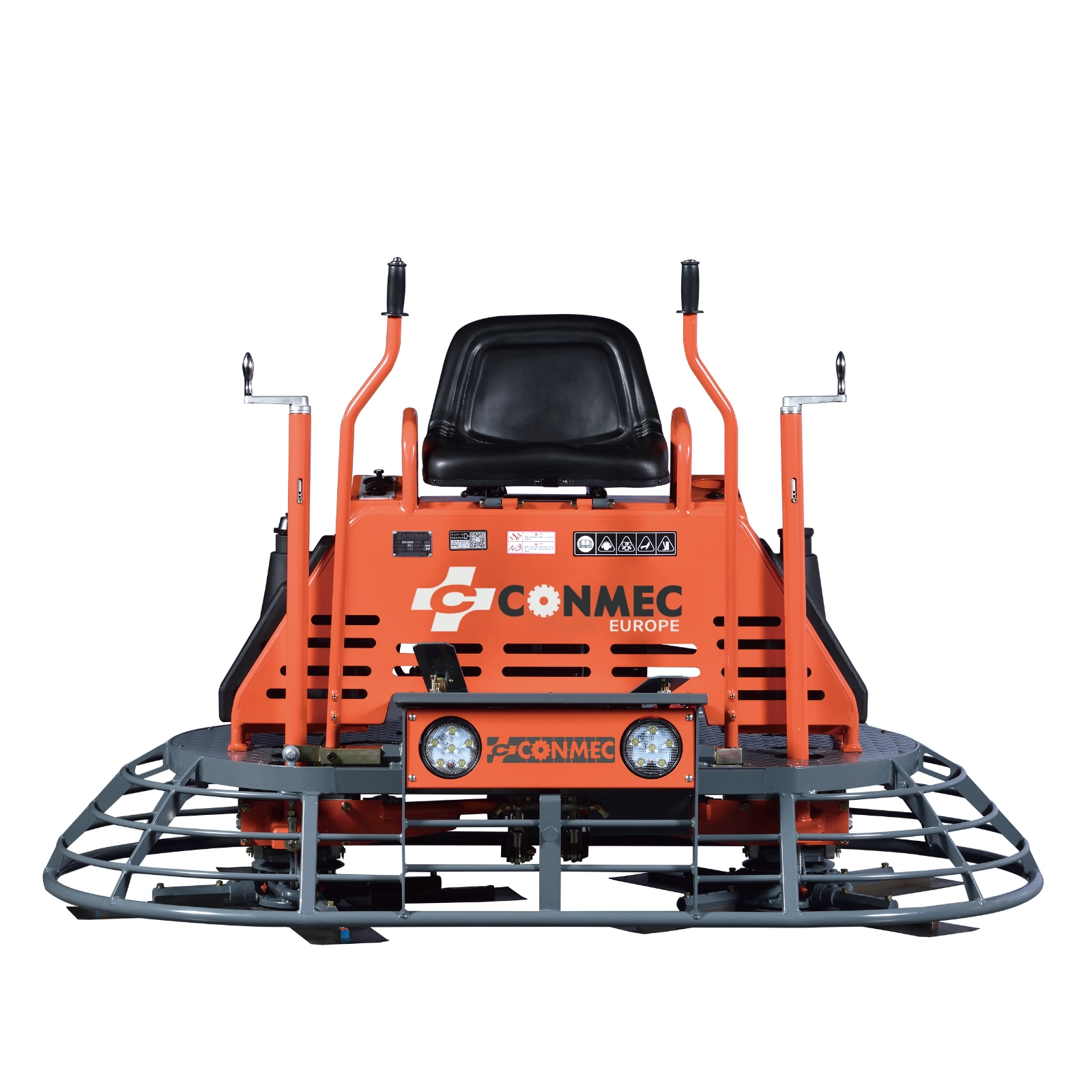

CRTE836 · Economical 36-Class
24 hp Honda GX690 with side-mounted control lever and 1.91 m working width.
Economical 36-class ride-on — smart starting point for ride-on finishing.

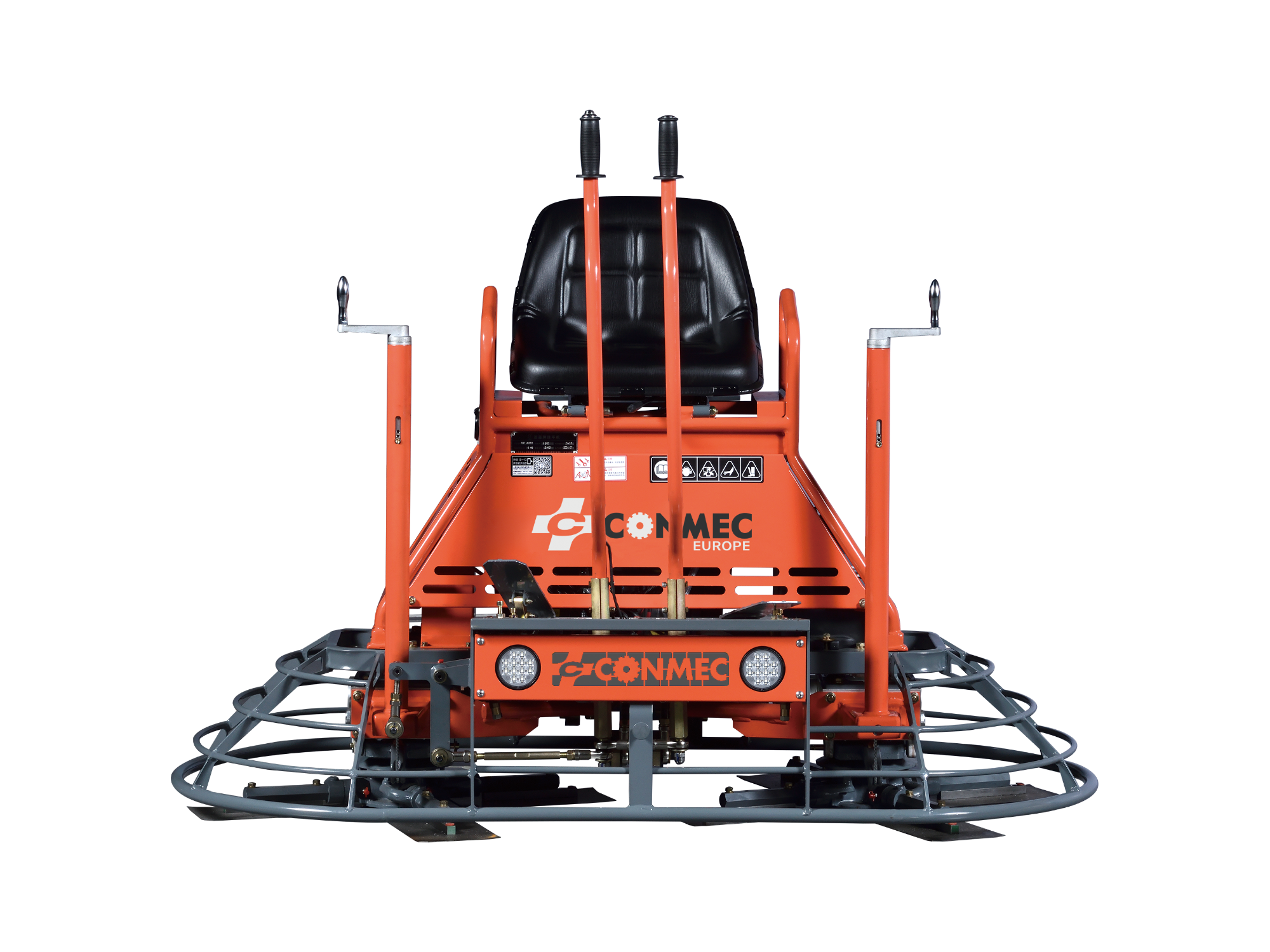

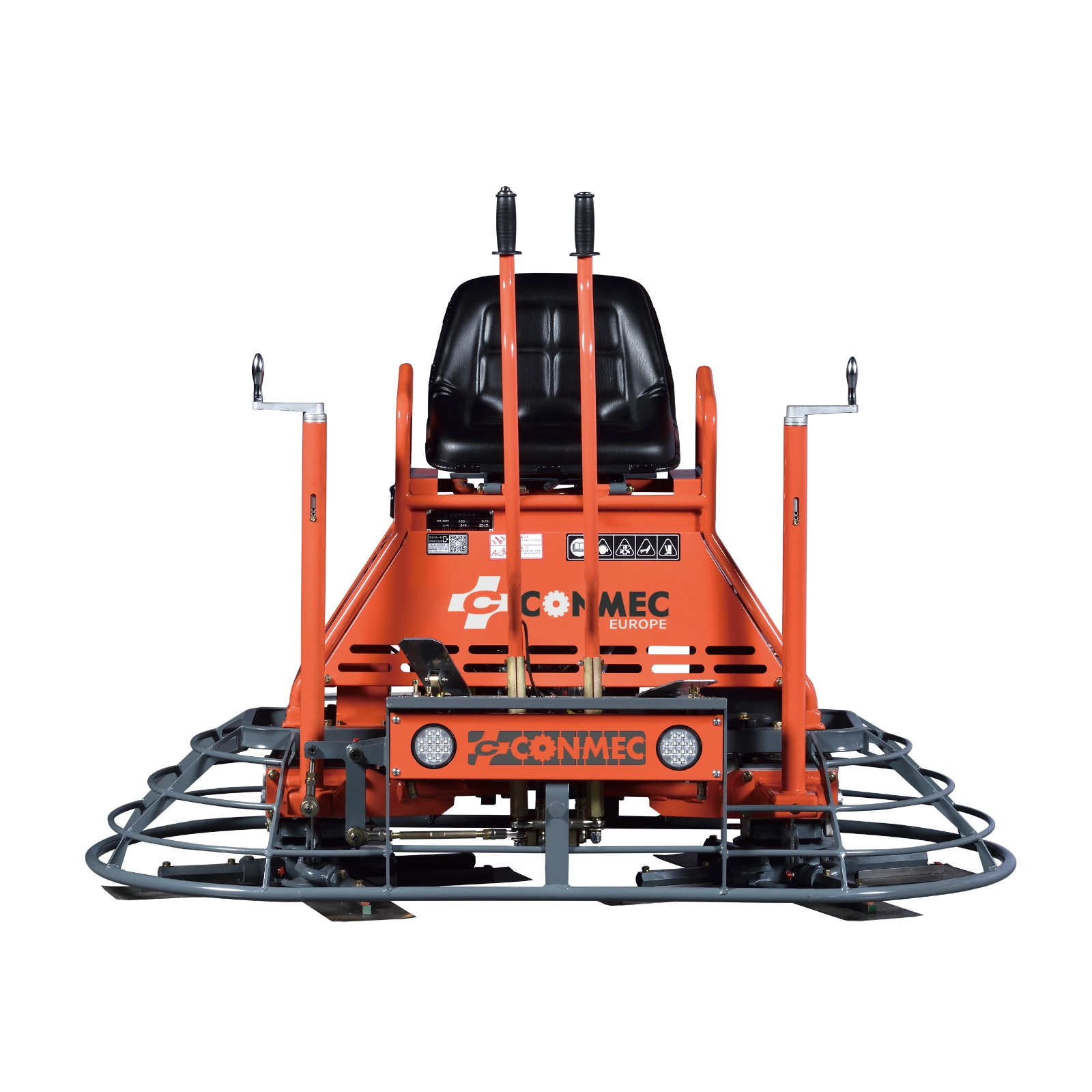

CRTN830 · Compact Bay Ride-On
13–14 hp class engine, 1.67 m working width and 8 blades for small bays and edge work.
Very good manoeuvrability around columns, edges and penetrations.
CRTN1260 · Large 60-Class Ride-On
70 hp Hatz 4H50TIC diesel, 3.05 m working width and 12 blades for maximum output on very large slabs.
⚠ Not in EU stock · Built to order · Approx. 2–3 month lead time

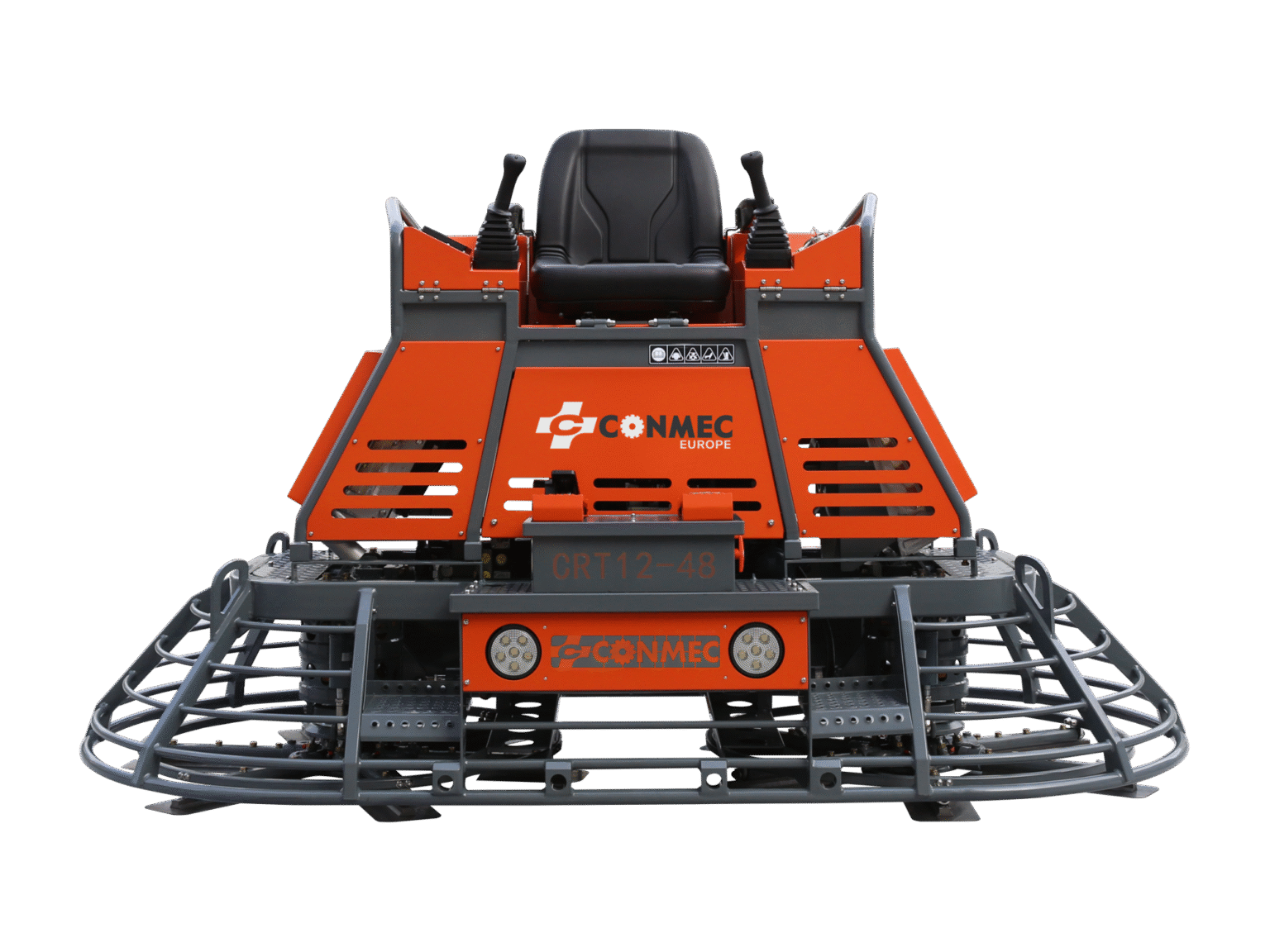

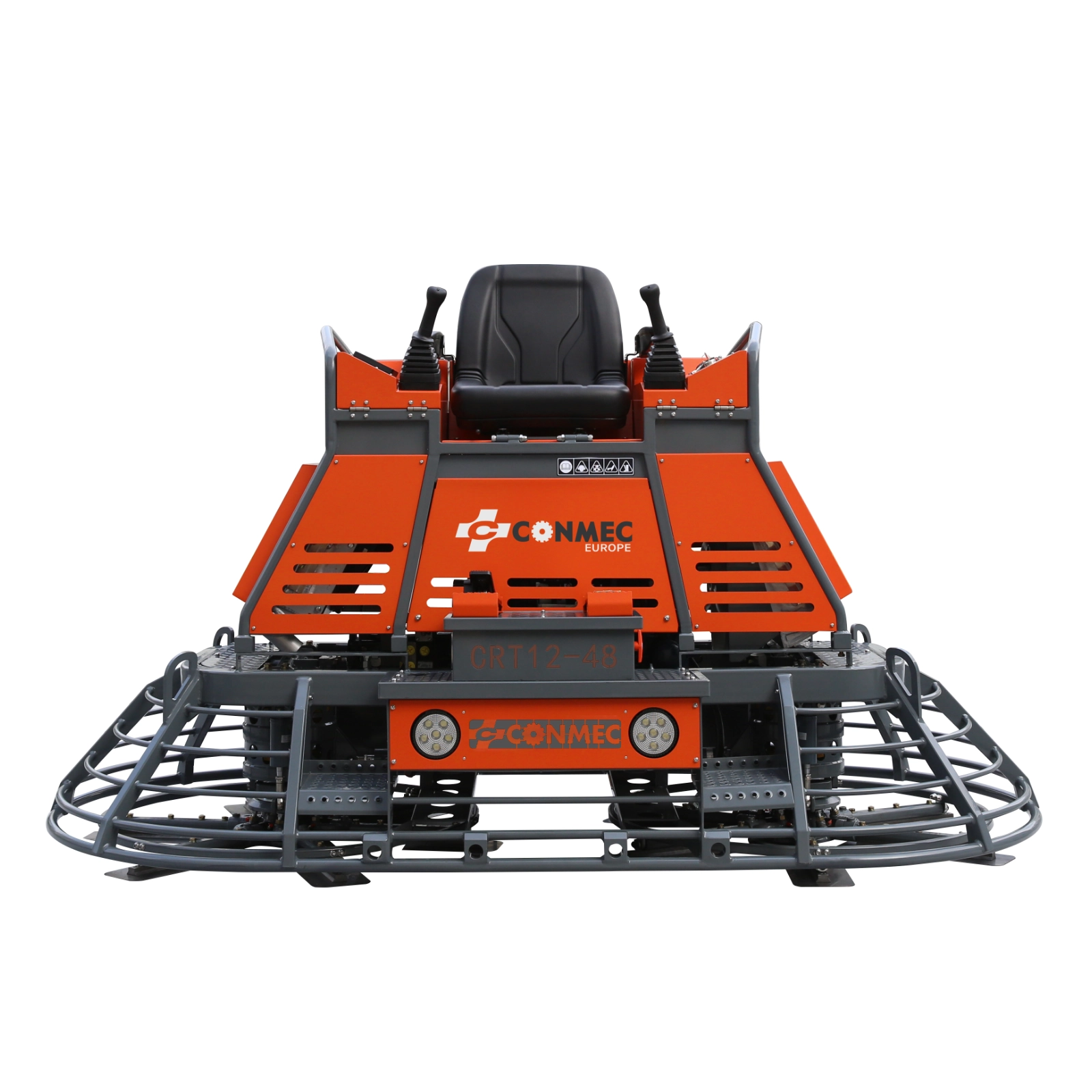

CRTN1248 · Large 48-Class Ride-On
65.2 hp Kubota V2403 diesel, 2.42 m working width and 12 blades for high-output commercial projects.
⚠ Not in EU stock · Built to order · Approx. 2–3 month lead time
Large-Diameter Models (Special Order)
For very large slab projects, CONMEC produces high-capacity ride-on trowels in the 48 and 60 rotor families.

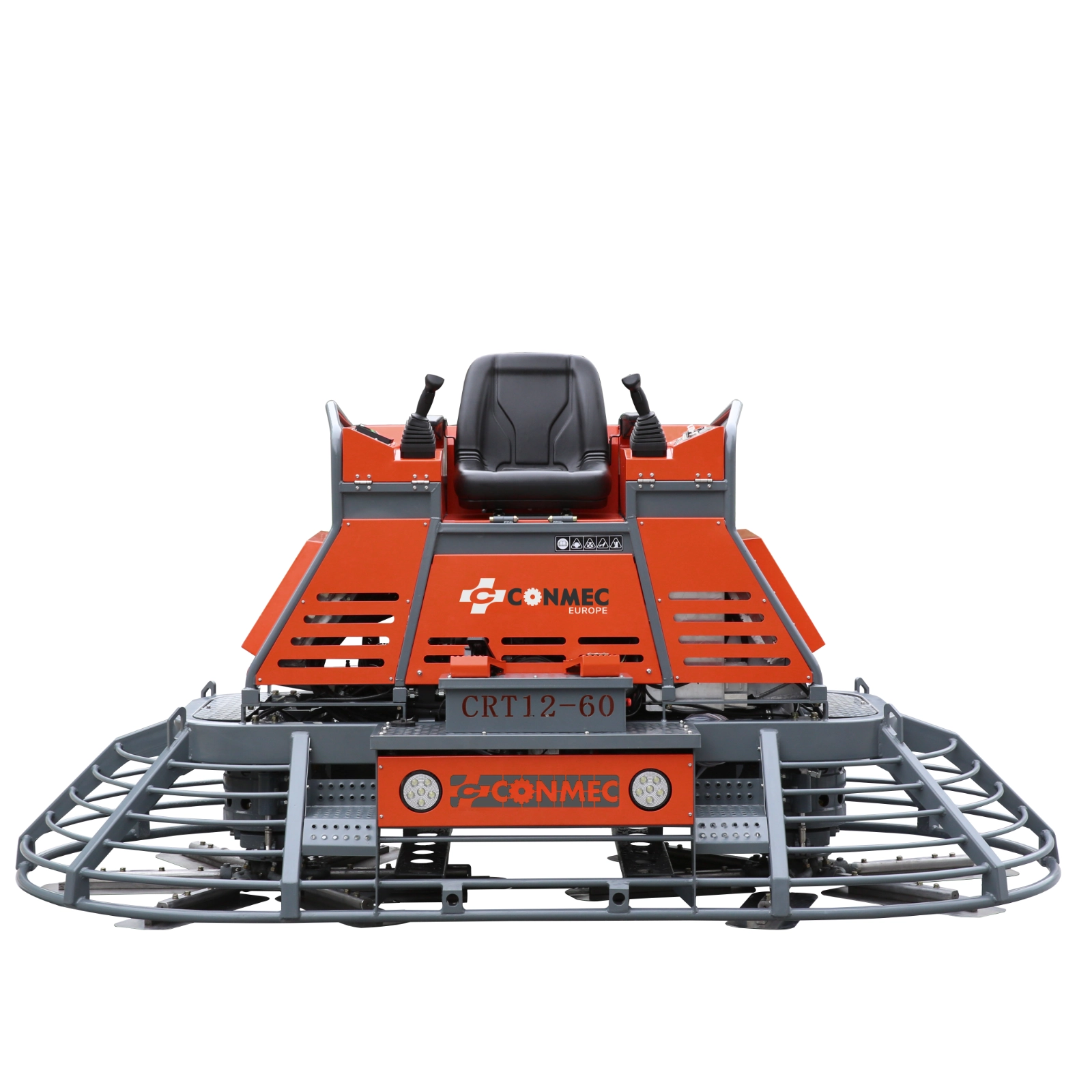

CRTN1260 · 3.05 m Working Width
Full-hydraulic 60-class diesel ride-on trowel for large-scale industrial floors and long working hours. Supplied as a built-to-order model for European customers.
CRTN1248 · 2.42 m Working Width
48-class diesel ride-on trowel where high productivity is required but access is tighter than 3 m class machines. Also supplied on a built-to-order basis.
Note: CRTN1260 and CRTN1248 are supplied on a built-to-order basis. Please contact CONMEC Europe to confirm lead time and regional compliance.
Key Features of CONMEC Ride-On Power Trowels
Designed for European contractors who demand high productivity, flat floors and safe operation.
- Dual-rotor designs with up to 12 blades for fast coverage on large slabs.
- Heavy machine designs for dense, durable concrete surfaces.
- Rotor families from 30 to 60 class to suit different pour sizes and slab layouts.
- Robust driveline and rotors engineered for continuous industrial use.
- Strong frames and guards to protect critical components on rough job sites.
- Low-maintenance layouts suited to rental fleets and daily contractor work.
- CE-compliant guarding and emergency stop systems.
- Operator presence features to help prevent unintended machine movement.
- Engine options and configurations compatible with European requirements.
- Comfortable seating and intuitive steering layouts (joystick or lever, model dependent).
- Good visibility to the slab surface to monitor finishing quality.
- Optional lighting and accessories for extended working windows.

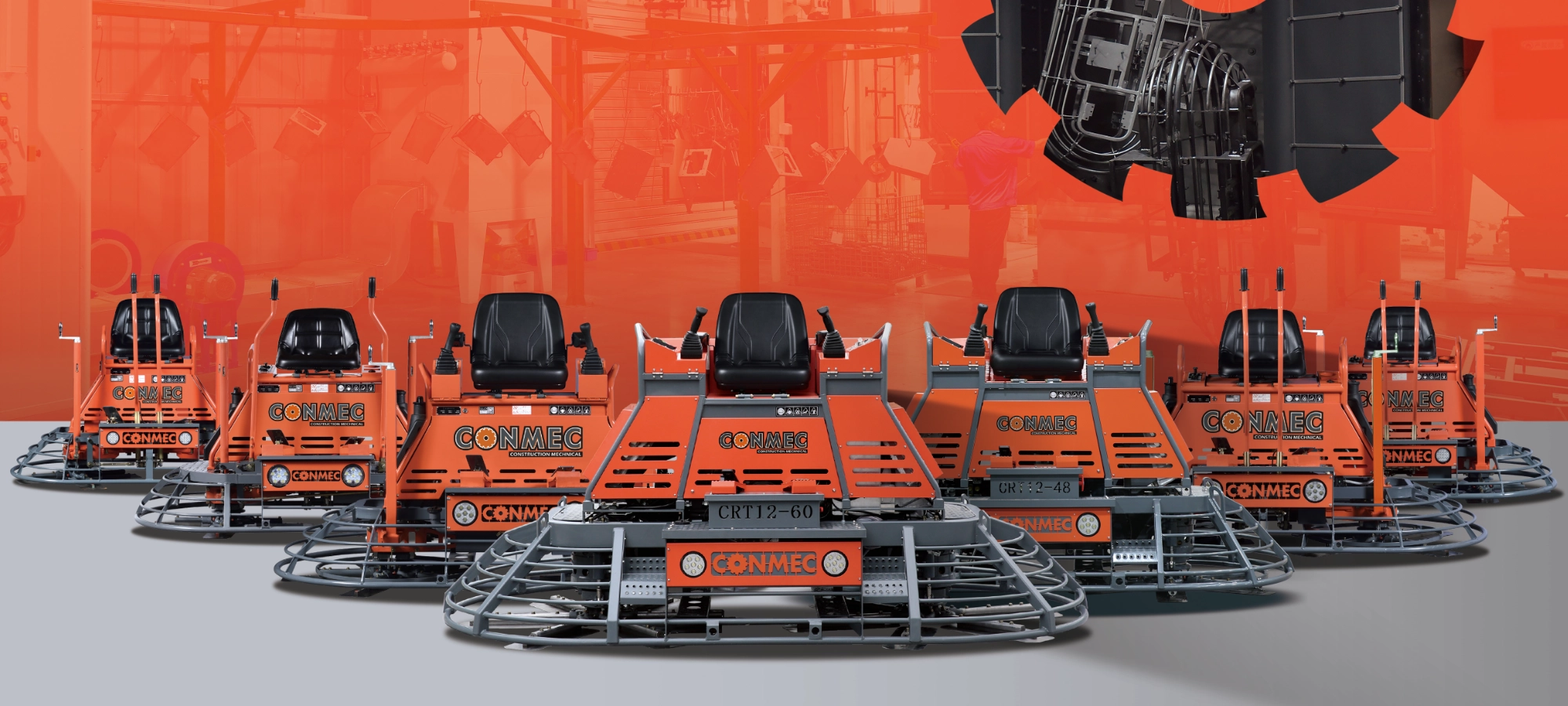

Complete Ride-On Power Trowel Family
From compact 30-class to large 60-class machines, CONMEC ride-on trowels cover the full range of slab sizes and productivity requirements.
Applications
CONMEC ride-on power trowels are chosen for high-output concrete finishing across Europe.

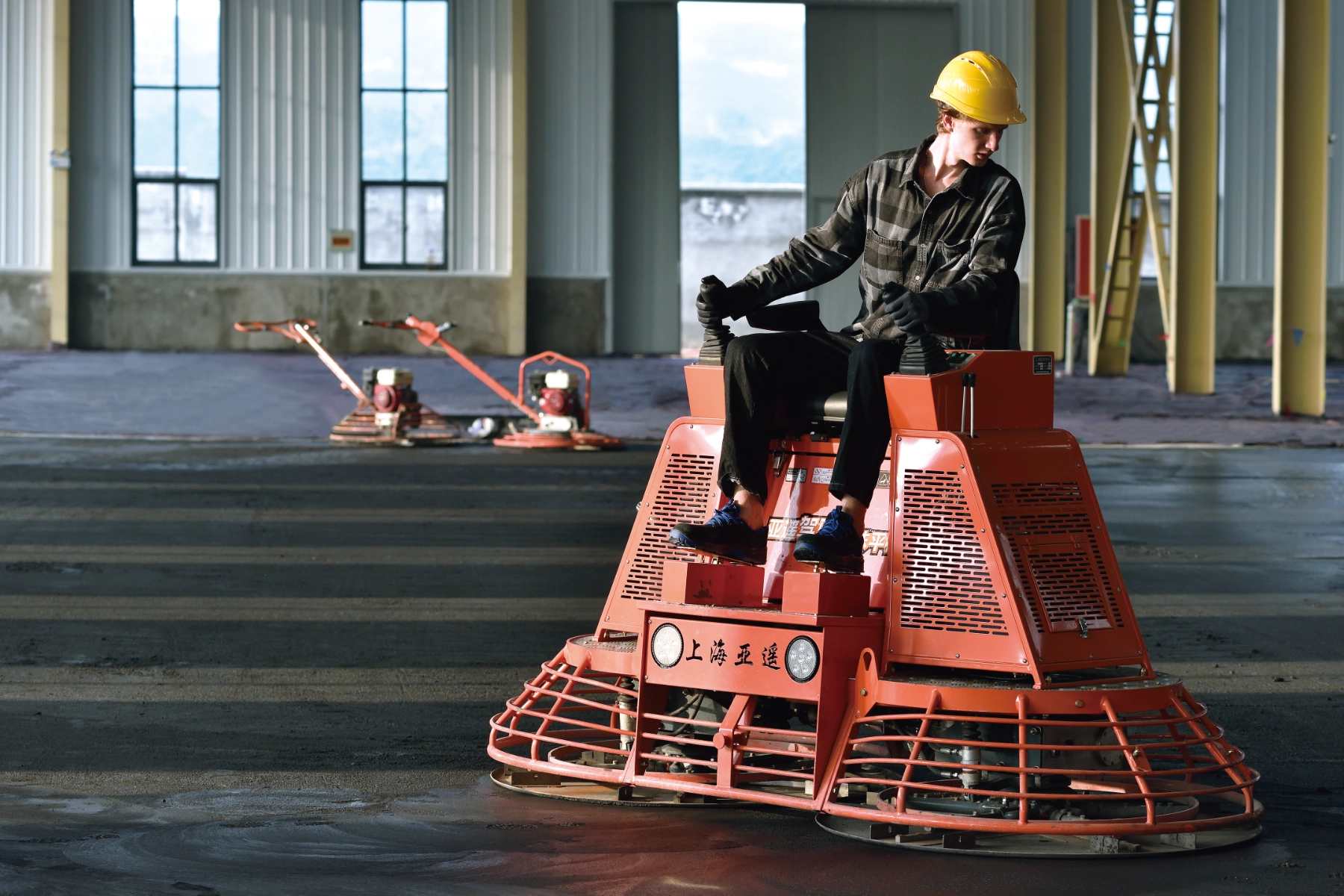

Industrial Floors & Warehouses
Designed for large industrial slabs that require high flatness and durable surfaces.
Distribution & Logistics Centres
Ideal behind laser screeds on high-volume pours with demanding flatness specifications.
Commercial & Retail Projects
Delivers consistent finishing quality in shopping centres, retail parks and showrooms.
Multi-Storey Car Parks
36-class and 30-class models handle tighter layouts, ramps and edge work.
Rental Fleets & Major Contractors
Built for frequent transport, intensive daily use and straightforward maintenance.
Large Infrastructure Projects
Suitable for tunnels, airport slabs and infrastructure where output and reliability matter.
Model Comparison
Key technical specifications for the CONMEC ride-on power trowel range (EU units).
| Model | Engine | Max Power | Working Width (Troweling Path) | Rotor / Pan Diameter | Number of Blades | Availability |
|---|---|---|---|---|---|---|
| CRTN1260 | Hatz 4H50TIC · Diesel | 55.4 kW / 74.3 hp | 3048 mm | Pans: Ø 1524 mm | 12 | Built to order · Approx. 2–3 month lead time |
| CRTN1248 | Kubota V2403 · Diesel | 48.6 kW / 65.2 hp | 2420 mm | Pans: Ø 1210 mm | 12 | Built to order · Approx. 2–3 month lead time |
| CRTN1046 | B&S Vanguard 35HP · Petrol | 26.1 kW / 35 hp | 2350 mm | Pans: Ø 1170 mm | 10 | EU stock |
| CRTN846 | B&S Vanguard 35HP · Petrol | 26.1 kW / 35 hp | 2350 mm | Pans: Ø 1524 mm | 8 | EU stock |
| CRTH836 | Honda GX690 · Petrol | 17.6 kW / 24 hp | 1910 mm | Pans: Ø 970 mm | 8 | EU stock · hydraulic joysticks |
| CRTN836 | Honda GX690 · Petrol | 17.6 kW / 24 hp | 1910 mm | Pans: Ø 970 mm | 8 | EU stock · centre linkage |
| CRTS836 | Honda GX690 · Petrol | 17.6 kW / 24 hp | 1910 mm | Pans: Ø 970 mm | 8 | EU stock · side linkage |
| CRTE836 | Honda GX690 · Petrol | 17.6 kW / 24 hp | 1910 mm | Pans: Ø 970 mm | 8 | EU stock · economical spec |
| CRTN830 | Honda GX390 / B&S Vanguard 400 · Petrol | 9.6–10 kW / 13–14 hp | 1665 mm | Pans: Ø 780 mm | 8 | EU stock · compact |
* Specifications shown in metric units for the EU market. Data based on CONMEC Europe product specifications.
