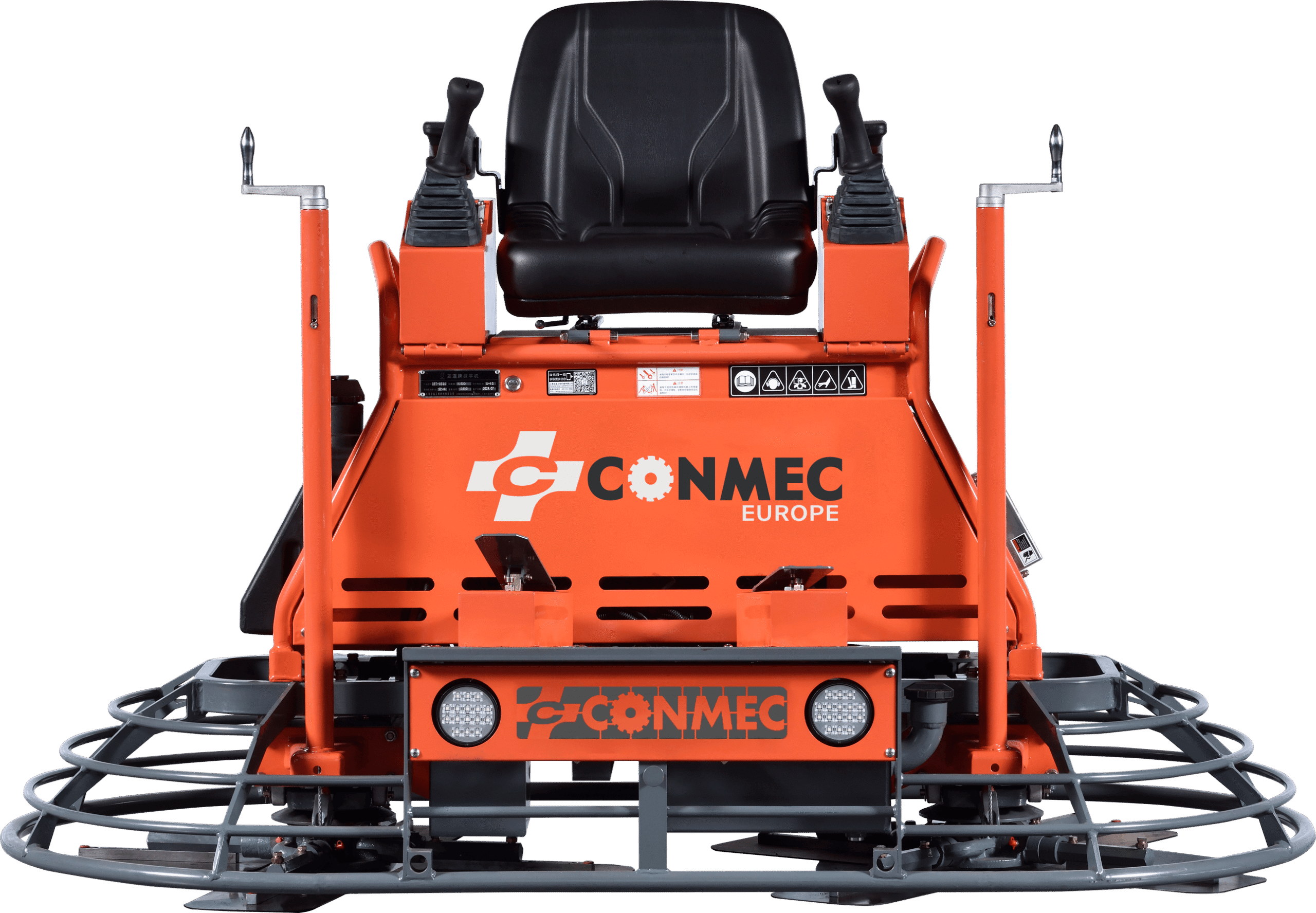

CONMEC CRT-H836
24 HP Honda GX690 · 1.91 m Working Width · 8 Blades
- Hydraulic joystick steering
- Maximum 150 rpm rotational speed
- Rugged one-piece welded frame
Specifications
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-H836 |
| Operating Weight | 382 kg / 842 lbs |
| Engine | Honda GX690 |
| Engine Speed | 3600 rpm |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 16 L / 3.08 gal |
| Water Tank Capacity | 16 L / 3.08 gal |
| Maximum Rated Power | 17.6 kW / 24 hp |
| Maximun Rotational Speed | 150 rpm |
| Troweling Path Width | 1,910 mm / 75.2 in |
| Number of Blades | 8 |
| Blade Size | 355 × 150 mm / 14 × 5.9 in |
| Pan Diameter | 970 mm / 38.2 in |
| Dimensions (L×W×H) | 1,990 × 1,030 × 965 mm / 78.3 × 40.6 × 38 in |
| Steering Control System | Hydraulic Joysticks |
Professional Equipments for Concrete Heroes.
High Productivity
1.91 m working width with 8 blades and 382 kg weight for efficient surface finishing.
Powerful Engine – Honda GX690
Honda GX690 engine with centrifugal clutch delivers reliable, continuous performance.
Smooth Power Transmission
Precision bearings and reinforced drivetrain ensure stable and efficient torque transfer.
Responsive Hydraulic Control
Hydraulic pilot levers provide accurate handling and reduced operator fatigue.
Adjustable Blade Pitch
Visual scale allows precise blade pitch adjustments at every stage.
Integrated Spray System
High-efficiency pump and pressure nozzles ensure uniform surface wetting.
Reinforced Frame & Gearbox
One-piece high-strength frame and full-aluminum gearbox enhance durability.
Operator Comfort & Safety
Adjustable insulated seat, foot emergency stop, and bright LED headlights.
Easy Transport
Solid-wheel transport cart allows easy relocation.
Ergonomic Features
Multifunction display, USB port, tool kit, manual blade holder, and cup holder.
