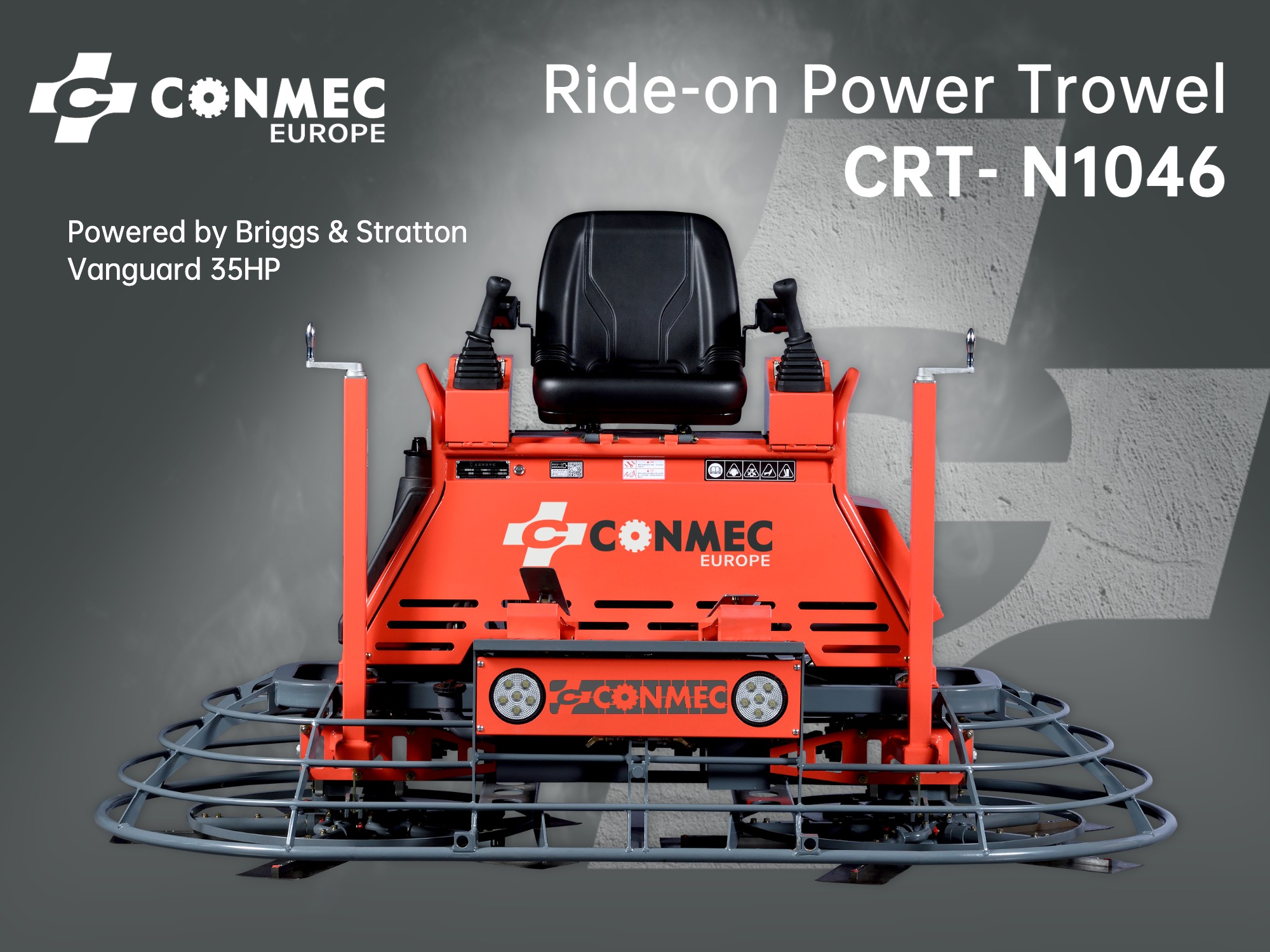

CONMEC CRT-N1046
35 HP Briggs & Stratton Vanguard· 2.35 m Working Width · 10 Blades
- Hydraulic joystick steering
- 75–150 rpm rotational speed
- Rugged one-piece welded frame
Specifications
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-N1046 |
| Operating Weight | 530 kg / 1168 lbs |
| Engine | Briggs & Stratton Vanguard 35HP |
| Engine Speed | 3600 rpm |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 11 L / 2.9 gal |
| Maximum Rated Power | 26.1 kW / 35 hp |
| Rotational Speed | 75-150 rpm |
| Troweling Path Width | 2350 mm / 92.5 in |
| Number of Blades | 12 |
| Blade Size | 460 × 150 mm / 18.1 × 5.9 in |
| Pan Diameter | 1170 mm / 46.1 in |
| Dimensions (L×W×H) | 2480 × 1270 × 1520 mm / 97.6 × 50 × 59.8 in |
| Steering Control System | Hydraulic Joysticks |
