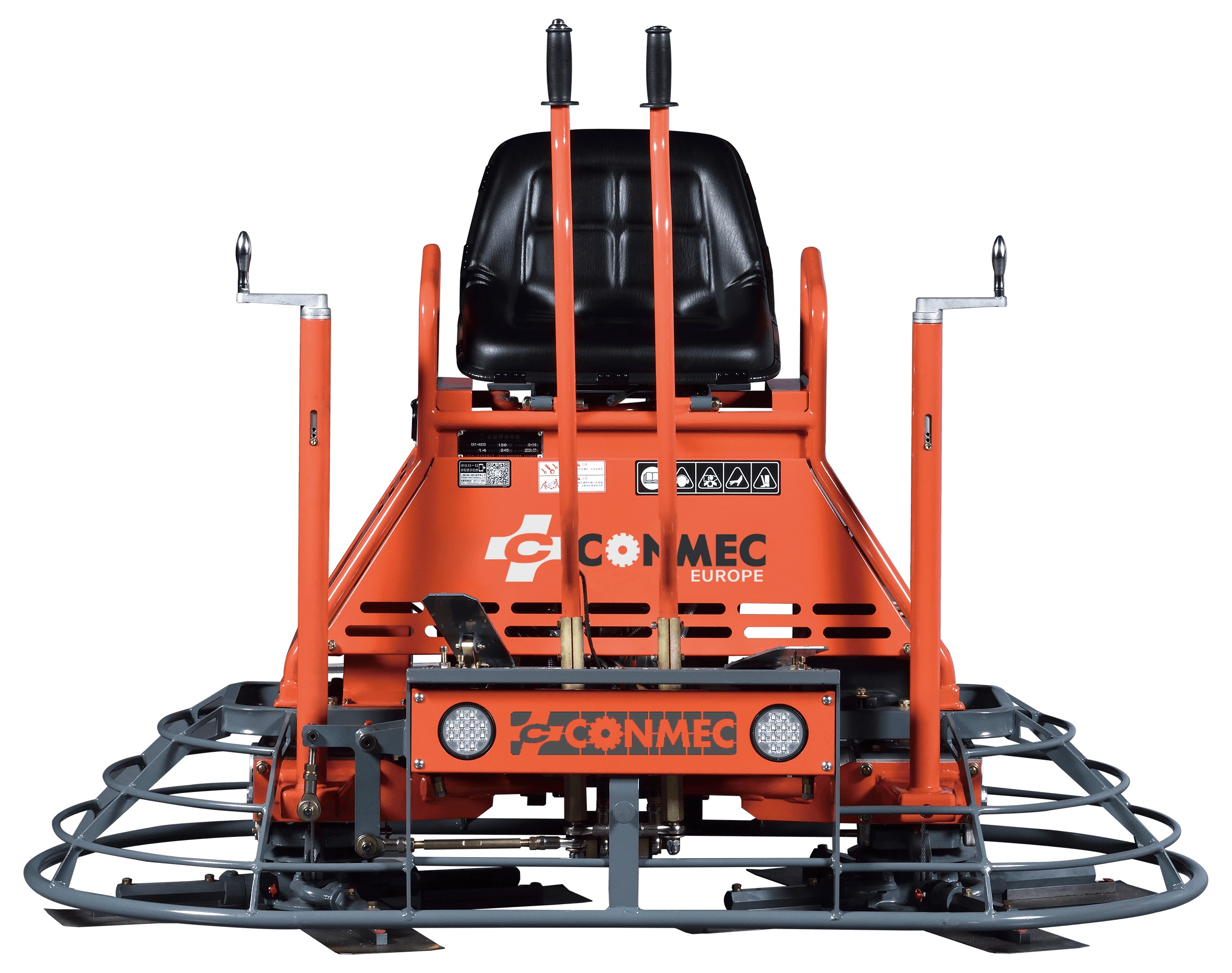

CONMEC CRT-N830
14 HP B&S Vanguard 400· 1.66 m Working Width · 8 Blades
- Center Linkage Lever
- Maximum 150 rpm rotational speed
- Rugged one-piece welded frame
Specifications
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-N830 |
| Operating Weight | 246 kg / 542 lbs |
| Engine | Honda GX390 / B&S Vanguard 400 |
| Engine Speed | 3600 rpm |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5 L / 1.10 gal |
| Water Tank Capacity | 5 L / 1.10 gal |
| Maximum Rated Power | 9.6–10 kW / 13–14 HP |
| Maximun Rotational Speed | 150 rpm |
| Troweling Path Width | 1,665 mm / 65.6 in |
| Number of Blades | 8 |
| Blade Size | 290 × 150 mm / 11.4 × 5.9 in |
| Pan Diameter | 780 mm / 30.71 in |
| Dimensions (L×W×H) | 1,990 × 1,030 × 965 mm / 78.3 × 40.6 × 38 in |
| Steering Control System | Center Linkage Lever |
Professional Equipments for Concrete Heroes.
Compact & Agile
1.67 m working width with 8 blades and 246 kg weight for high-efficiency finishing in tight spaces.
Powerful Engine Options
Honda GX390 or B&S Vanguard 400 engine with centrifugal clutch delivers reliable, continuous power.
Stable Transmission
Precision bearings and reinforced drivetrain ensure smooth and efficient power delivery.
Responsive Handling
Optimized center-mounted linkage controls improve comfort and precision while reducing operator fatigue.
Integrated Spray System
High-efficiency pump and pressure nozzles ensure uniform water distribution for consistent finishing.
Reinforced Frame & Gearbox
One-piece high-strength frame with full-aluminum gearbox for durability and excellent heat dissipation.
Operator Comfort & Safety
Heat-insulated adjustable seat, foot-operated emergency stop, and embedded LED lighting for safe and comfortable operation.
Easy Transport
Solid-wheel transport cart allows quick and effortless relocation.
Ergonomic Features
Multifunction display, USB port, tool kit, manual blade holder, and cup holder for operator convenience.
