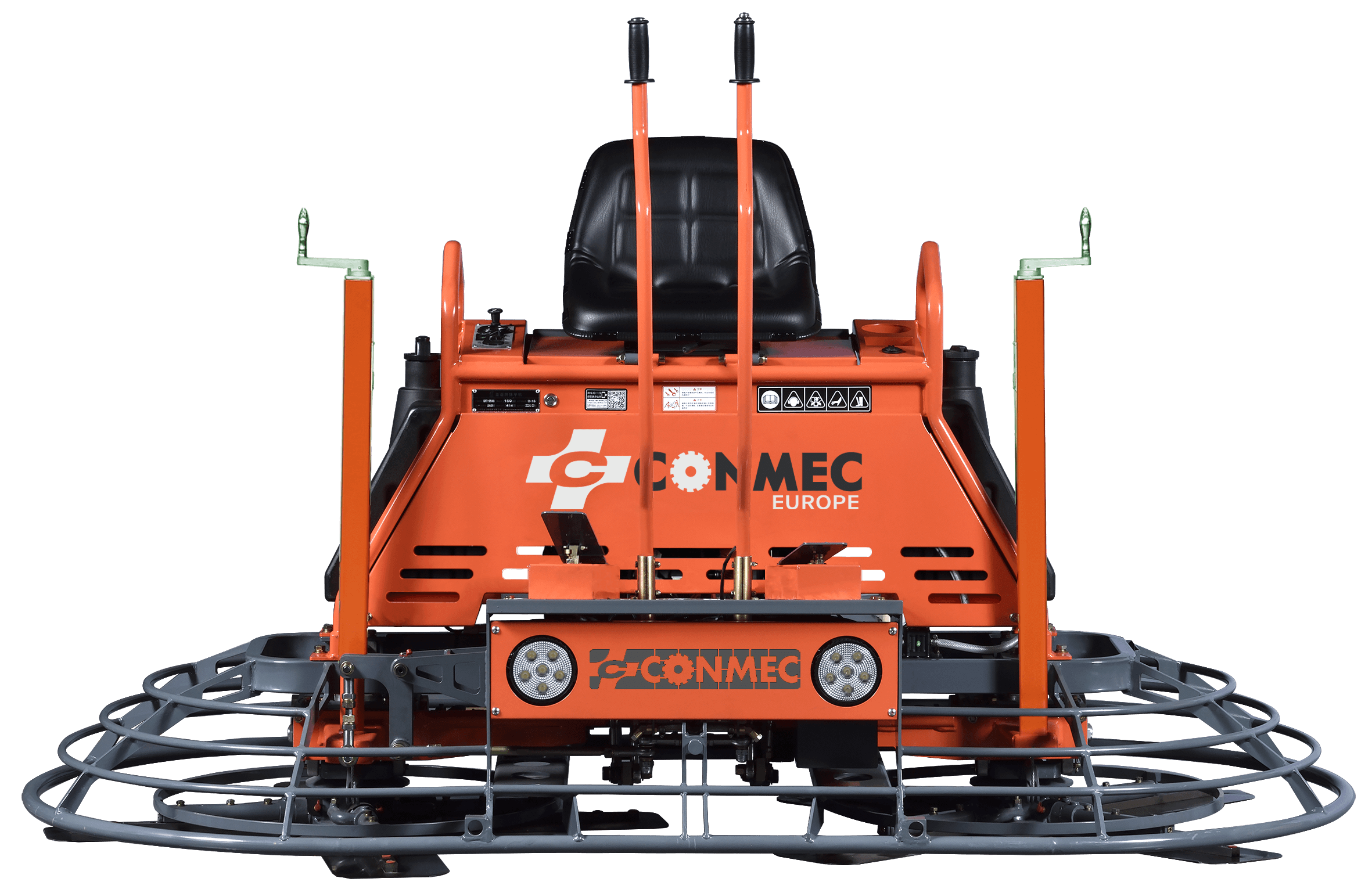

CONMEC CRT-N846
35 HP Briggs & Stratton Vanguard · 2.35 m Working Width · 8 Blades
- Maximum 150 rpm rotational speed
- Rugged one-piece welded frame
Specifications
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-N846 |
| Operating Weight | 436 kg / 961 lbs |
| Engine | Briggs & Stratton Vanguard 35HP |
| Engine Speed | 3600 rpm |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 16 L / 3.5 gal |
| Water Tank Capacity | 16 L / 3.5 gal |
| Maximum Rated Power | 26.1 kW / 35 hp |
| Maximum Rotational Speed | 150 rpm |
| Troweling Path Width | 2350 mm / 92.5 in |
| Number of Blades | 8 |
| Blade Size | 460 × 150 mm / 18.1 × 5.9 in |
| Pan Diameter | 1524 mm / 60 in |
| Dimensions (L×W×H) | 2410 × 1270 × 1320 mm / 94.9 × 50 × 52 in |
| Steering Control System | Center-Mounted Mechanical Controls |
Professional Equipments for Concrete Heroes.
High Productivity
2.35 m working width with 8 blades and 436 kg weight for efficient finishing.
Powerful Engine – B&S Vanguard
Briggs & Stratton Vanguard engine with centrifugal clutch ensures continuous, reliable output.
Stable Power Transmission
Precision bearings and reinforced drivetrain ensure smooth and efficient torque delivery.
Optimized Handling
Center-mounted mechanical controls enhance precision and reduce operator fatigue.
Adjustable Blade Pitch
Visual scale allows accurate blade angle adjustment at each finishing stage.
Integrated Spray System
High-efficiency pump with pressure nozzles ensures uniform water distribution.
Reinforced Frame & Gearbox
One-piece, high-strength frame with full-aluminum gearbox for stable and durable operation.
Operator Comfort & Safety
Adjustable heat-insulated seat, foot-operated emergency stop, and bright LED headlights.
Easy Transport
Solid-wheel transport cart allows effortless movement between work areas.
Ergonomic Features
Multifunction display, tool kit, USB port, manual blade holder, and cup holder.
