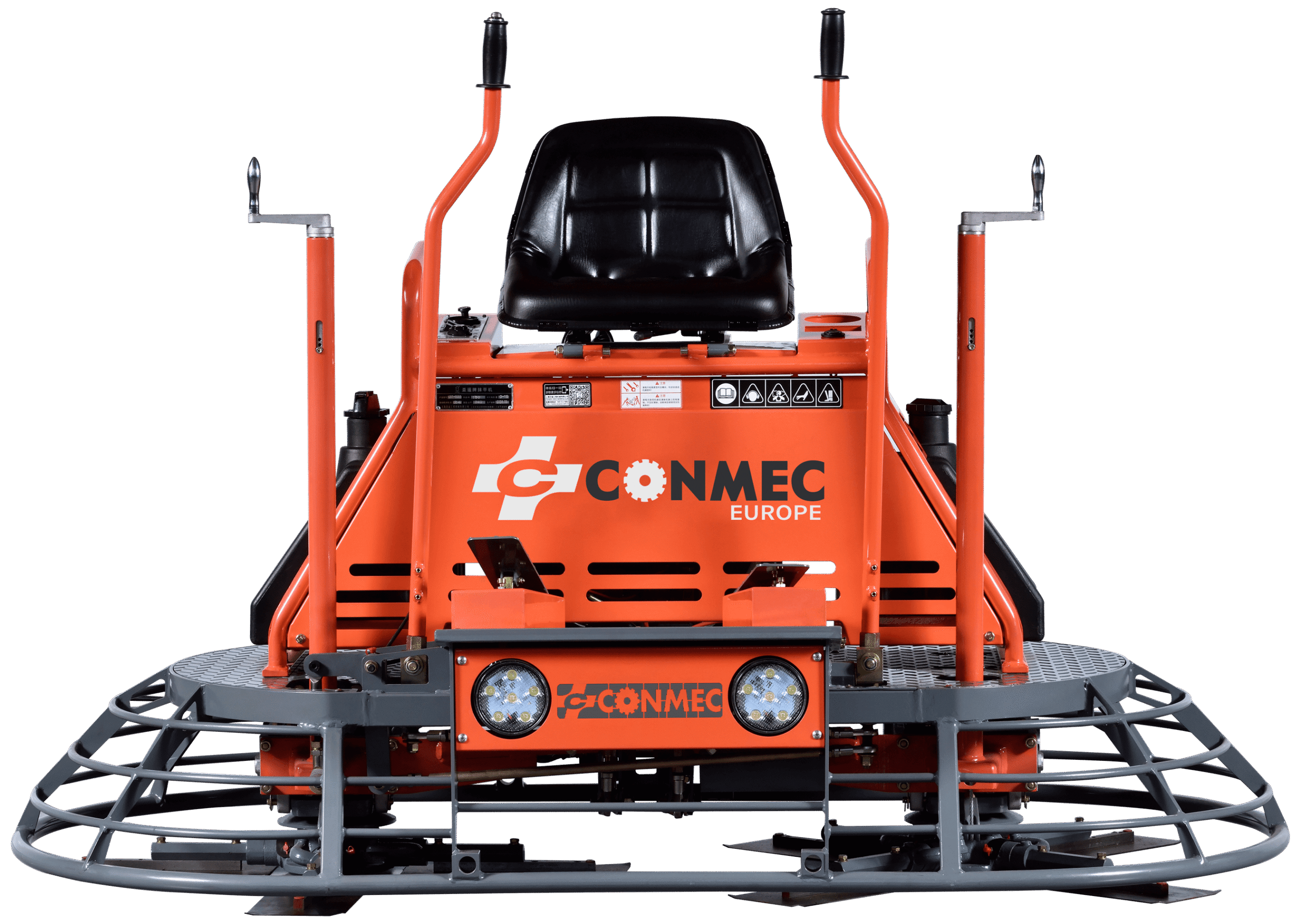

CONMEC CRT-S836
24 HP Honda GX690 · 1.91 m Working Width · 8 Blades
- Fast in & Fast out
- Maximum 150 rpm rotational speed
- Rugged one-piece welded frame
Specifications
| Parameter | Specification (Metric / Imperial) |
|---|---|
| Model | CRT-S836 |
| Operating Weight | 340 kg / 750 lbs |
| Engine | Honda GX690 |
| Engine Speed | 3600 rpm |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 16 L / 3.08 gal |
| Water Tank Capacity | 16 L / 3.08 gal |
| Maximum Rated Power | 17.6 kW / 24 hp |
| Maximun Rotational Speed | 150 rpm |
| Troweling Path Width | 1,910 mm / 75.2 in |
| Number of Blades | 8 |
| Blade Size | 355 × 150 mm / 14 × 5.9 in |
| Pan Diameter | 970 mm / 38.2 in |
| Dimensions (L×W×H) | 2,020 × 1,040 × 1,270 mm / 79.5 × 40.9 × 50 in |
| Steering Control System | Side-Mounted Linkage Lever |
Professional Equipments for Concrete Heroes.
High Productivity
1.91 m working width with 8 blades and 340 kg weight for efficient finishing.
Powerful Engine – Honda GX690
Honda GX690 engine with centrifugal clutch ensures continuous and reliable operation.
Stable Power Transmission
Precision bearings and reinforced drivetrain deliver smooth torque.
Side-Mounted Control
Side-mounted linkage allows quick operator entry and exit for flexible site maneuvering.
Integrated Spray System
High-efficiency pump with pressure nozzles ensures uniform spray coverage.
Durable Frame & Gearbox
One-piece high-strength frame with full-aluminum gearbox for reliable, long-lasting use.
Operator Comfort & Safety
Adjustable seat, foot-operated emergency stop, and bright LED lighting.
Easy Transport
Solid-wheel transport cart enables effortless relocation.
Ergonomic Features
Multifunction display, USB port, tool kit, manual blade holder, and cup holder.
